1. Product Introduction

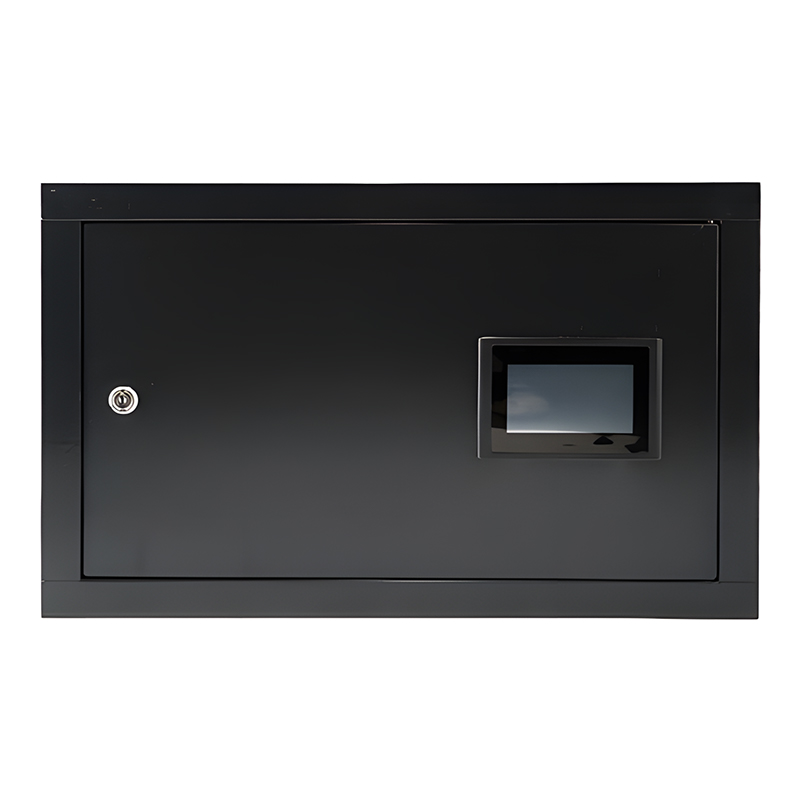

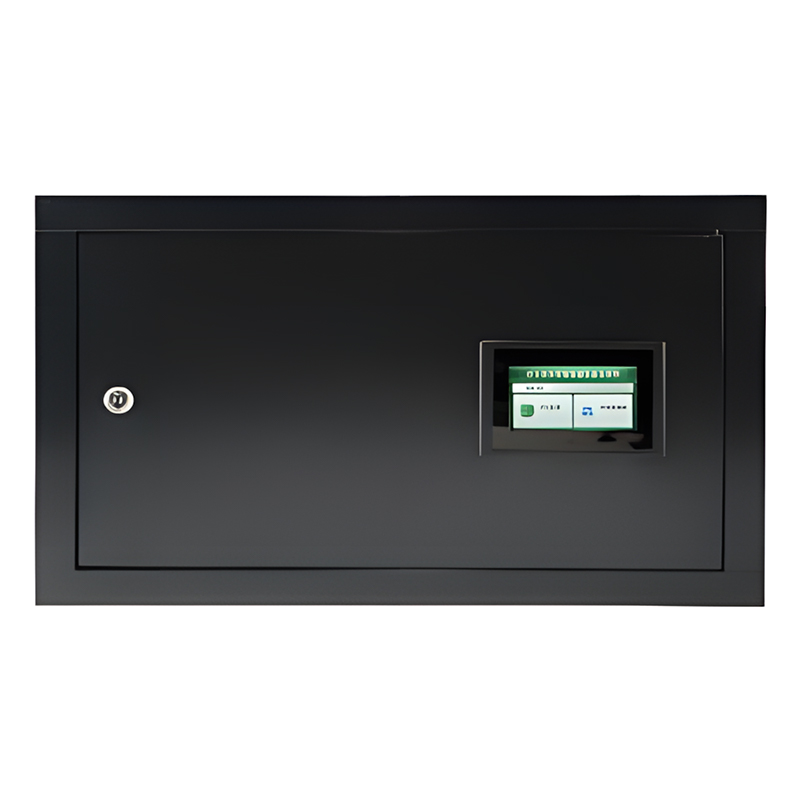

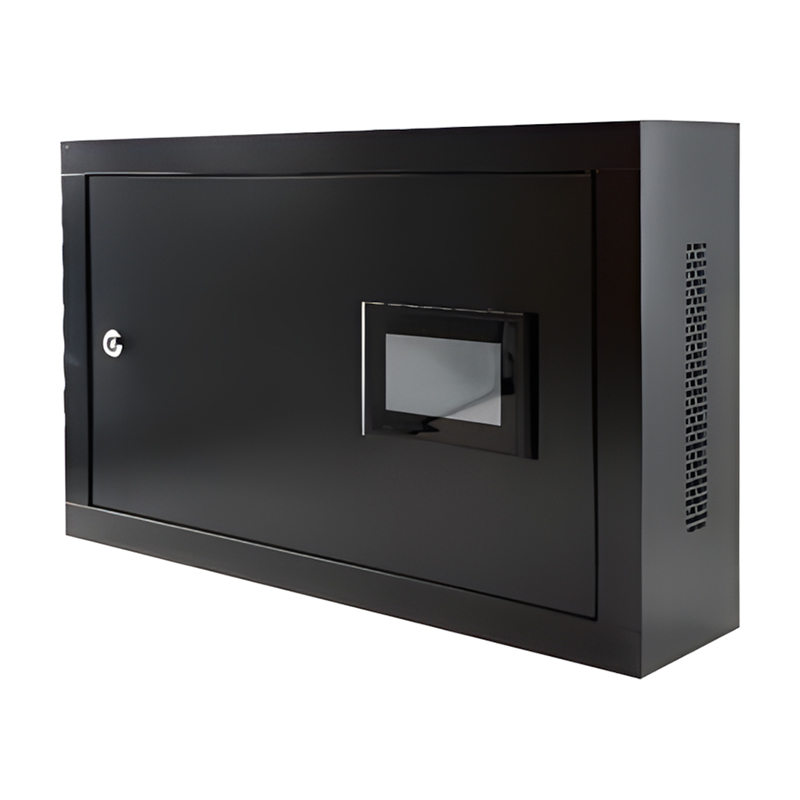

The wall-mounted intelligent auxiliary monitoring system collection front machine can monitor temperature and humidity, SF6 and O2, water level, water leakage, ozone, methane, intelligent air conditioning, dehumidifier, fan, water pump, lighting, intelligent air conditioning, smoke, infrared, temperature sensing, open flame, access control, fire protection, camera, transformer, switchgear, high-voltage cabinet, low-voltage cabinet and other contents, suitable for substations, switchgear, distribution rooms, switch stations, box substations and other places.
2. Product Parameter (Specification)
| Parameter Name | Parameter Details |
| Processor | Usually adopts embedded processors such as ARM quad-core |
| Video Interface | Some models support ≥2 HDMI input interfaces with audio collection capability, maximum input resolution of 4K (backward compatible); ≥2 HDMI output interfaces with audio output capability, maximum output resolution of 4K |
| Network Interface | Supports ≥5 RJ45 interfaces, among which ≥3 support POE. POE complies with IEEE802.3at and IEEE802.3af standards, with maximum single-channel power supply of 30W |
| Serial Port | Some products support up to 8 RS485 interfaces (half-duplex, electrically isolated) with baud rate of 300-115200bps and isolation voltage of 2500Vrms; some support ≥1 RS232 interface |
| USB Interface | Supports ≥4 USB interfaces |
| Audio Interface | Supports ≥2 line-level stereo audio inputs, ≥1 line-level stereo audio output, and ≥2 phantom-powered microphone inputs |
| Storage | Some have built-in 1TB hard drives; some built-in storage can save 520,000 records; some come with standard 8G TF cards supporting 20-year storage |
| Digital Input | e.g., some products support 8 channels of digital input |
| Digital Output | e.g., some products support 8 channels of normally open/normally closed digital output |
| Power Supply Range | DC 10-30V or DC 15-60V, etc. |
| Operating Temperature | -20℃ - +60℃ |
| Relative Humidity | 10-95% (non-condensing) |
| Dimensions | e.g., 240×118×49mm, etc. |
| Protection Grade | IP20, etc. |
| Supported Protocols | Some support power protocols such as IEC104 and IEC61850; some support ModBus-RTU protocol, etc. |
| Encryption Function | Some have built-in State Grid security encryption chips, supporting SM2, SM1, DES/3DES, RSA and other encryption algorithms |
3. Product Feature And Application
The wall-mounted intelligent auxiliary monitoring system collection front machine is suitable for government, electric power, military, banking, telecommunications, education, hospitals, airports, railways, factories, hotels, warehouses, transportation and other industries, and is designed for the integrated monitoring of power, environment and safety in substations, substations, distribution rooms, switchgear stations, residential distribution stations, box substations and other scenarios.
4. Product Details
1. Software and hardware can be customized by OEM.
2. Web online access, remote management at any time.
3. LCD display screen, on-site understanding of equipment status.
4. Flexible installation, easy deployment, shorten the construction period.
5. Simplify costs and ensure project benefits.
5. Deliver, Shipping And Serving
We provide comprehensive after-sales service, including a 1-year warranty and 24/7 technical support, ensuring that users have no worries during use.
6. How to install?
Wall-mounted intelligent auxiliary monitoring system collection pre-machine installation:
1. Material preparation: prepare electric drills, screwdrivers, expansion screws, as well as front machines, mounting brackets, and power adapters;
2. Location selection: avoid direct sunlight, humidity, high temperature, and strong electromagnetic interference areas to ensure easy connection to sensors and power supplies;
3. Bracket installation: mark the drilling position→ drill the hole→ screw in the expansion screw, fix the bracket;
4. Install the equipment: put the front machine on the bracket and fix it with screws;
5. Wiring: Connect sensors (such as RS485 interface), network/communication cable (Ethernet/4G) to ensure firm connection;
6. Power on: connect to the power adapter and check whether the indicator light is normal;
7. Testing: Transmit data through sensors to verify whether data collection and back-end communication are normal.
