1.Product Introduction
The embedded computer room monitoring host ROC-T can complete centralized monitoring and management of power supply and distribution, UPS, battery, temperature and humidity, air conditioning, water leakage, fresh fan, smoke detection, fire protection, lightning protection, infrared, access control, video, server, router, switch, etc., and alarm through SMS, telephone, email, sound and light, WeChat. The host provides working power for various sensors, and can use the built-in backup power supply to independently supply power to the host and sensors in the state of power outage, and can directly use IE browser for monitoring and management.
2.Product Parameter (Specification)
| Specification Model | ROC-T Series | Serial Camera | 1 RS232 interface, 12V power supply |
| System Architecture | ARM | SMS Interaction | Alarm confirmation, arming, disarming, relay control |
| Operating System | Linux | Cloud Platform | China Mobile OneNet IoT Platform |
| Monitoring Software | Smart Equipment Room Platform Software V1.0 | Mobile Terminal | WeChat Mini Program |
| Built-in Services | WEB, FTP, TELNET, SOAP, REST | USB Interface | 1 USB interface |
| Built-in Protocols | Interface B, IEC 61850, Guangming 104; supports telecom, railway, power, iron tower platforms | Indicator Lights | 3 Indicators (Power Indicator, System Operation Indicator, System Fault Indicator) |
| Network Interfaces | 2×10M/100M/1000M adaptive, physical interface: RJ-45 | Power Output Interfaces | 2×12VDC/1A standard power output interfaces |
| RS485 Serial Ports | 8 RJ-45 interfaces (with 12V power supply); 2 standard industrial interfaces | Power Supply | AC 220V, built-in 72W/30min backup lithium battery (optional) |
| RS232 Serial Ports | 4 standard DB9 interfaces; 1 RJ-45 interface (with 12V power supply) | Physical Dimensions | 433mm×320mm×26mm |
| DI Inputs | 8-channel optocoupler isolated digital inputs, RJ-45 interface (with 12V power supply) | Operating Environment | Temperature: -10℃ to 70℃; Humidity: 10% to 95% (non-condensing) |
| AI Inputs | 3-channel analog inputs, supporting optional current input (0~20mA) and voltage input (0~5V) | Weight | 2.5Kg |
| DO Outputs | 1×12VDC, 2-channel relay outputs (normally open/normally closed) | Product Certifications | CE, FCC, ROHS |
| Touch Screen | 4-inch, 8-inch, 10-inch, 15-inch, 21-inch | Product Selection | ROC-T100, ROC-T300, ROC-T500 |
3.Product Feature And Application
ROC-T is suitable for government, electric power, military, banking, telecommunications, education, hospitals, airports, railways, factories, hotels, warehouses, transportation and other industries, and is designed for the integrated monitoring of power, environment, security and network in computer network rooms, communication rooms, communication base stations, power base stations, substations, residential distribution stations, UPS rooms, battery pack rooms, outdoor cabinets, unattended sites, warehouses and other scenarios.
4.Product Details

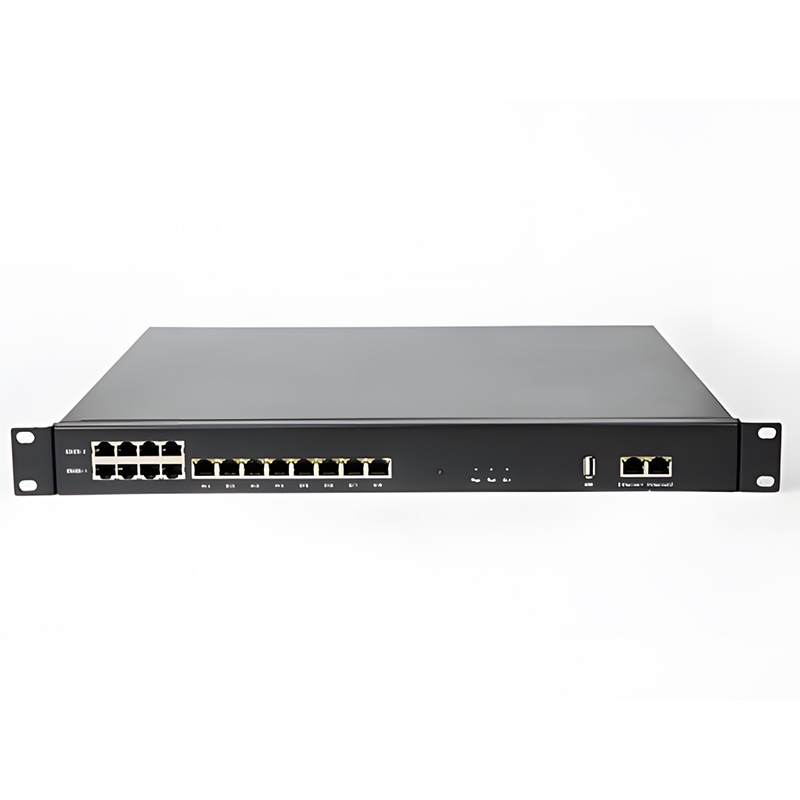

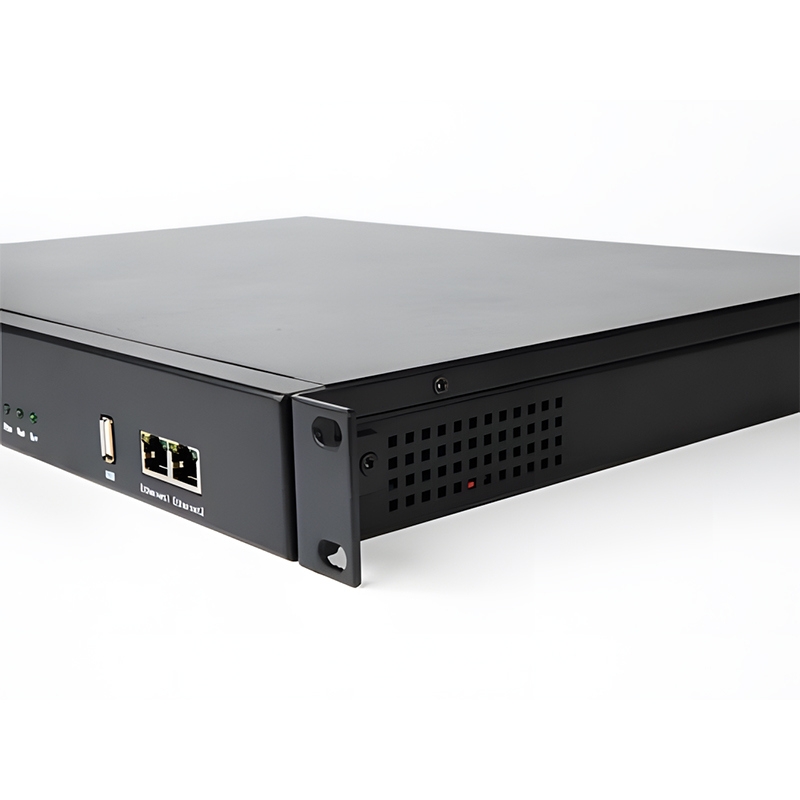

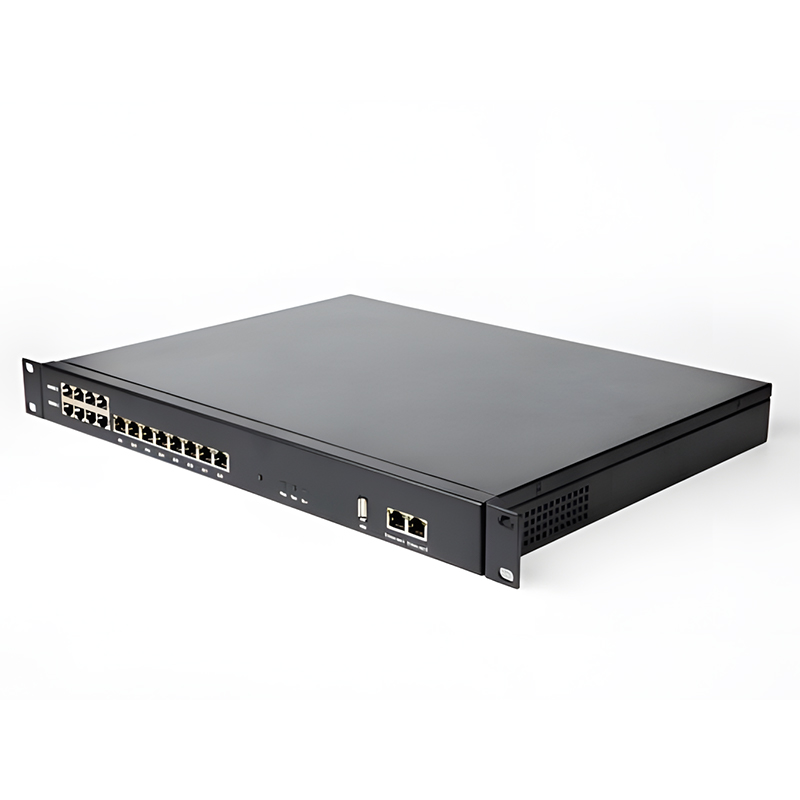

The ROC-T series of embedded computer room monitoring hosts adopts ARM architecture and Linux operating system, is equipped with smart data center platform software V1.0, built-in WEB/FTP and other services and B interfaces, IEC 61850 and other protocols, equipped with 2 Gigabit adaptive network ports, 8 RS485 serial ports with 12V power supply, 4 DB9 1 RS232 serial ports with RJ45 (with 12V), 8 DI inputs, 3 AI inputs, 1 12VDC 2 relay DO outputs, It supports 1 RS232 serial camera, 1 USB interface, 2 12VDC/1A power outputs, optional 4-21 inch touch screen and AC 220V power supply 72W/30min backup lithium battery, can be connected to China Mobile OneNet platform and WeChat mini program, and has SMS interaction function.
5.Deliver,Shipping And Serving
Embedded computer room monitoring host ROC-T will be shipped in 3-5 working days after payment confirmation when in stock, customized model (specified touch screen size, lithium battery for equipment, etc.) will be shipped in 7-10 working days, domestic use SF / Zhongtong and other door-to-door logistics, cross-border small batch air freight, large batch sea freight and assist in customs clearance, packaged as anti-static bag shock-absorbing foam corrugated carton (including main unit, power cord and other accessories), 2 years free warranty from the date of delivery (1 year for spare lithium batteries) can be arranged for door-to-door maintenance if remote cannot be solved.
6. How to install?

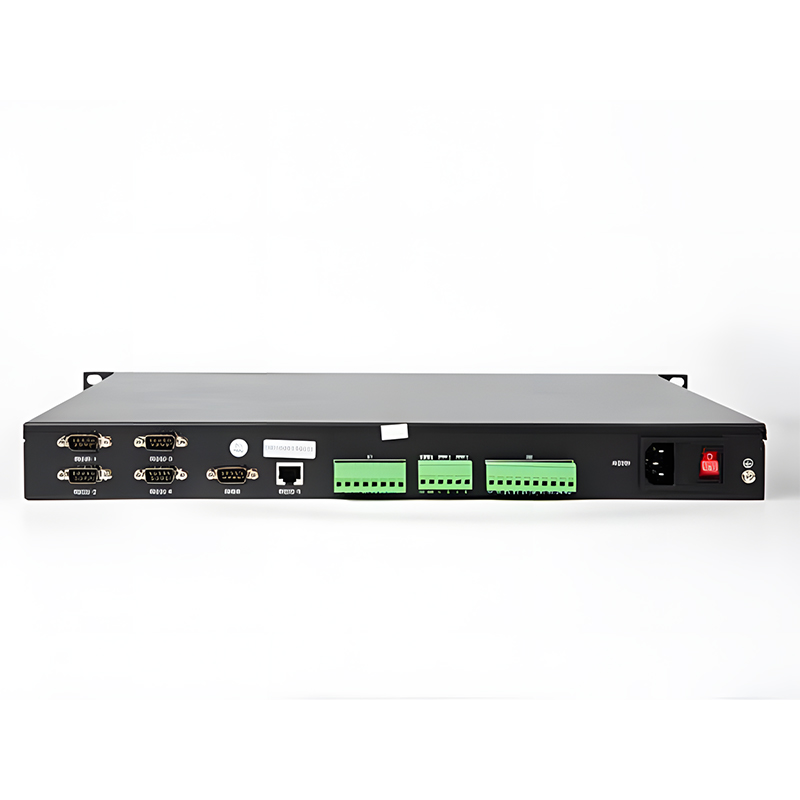

To install the ROC-T embedded computer room monitoring host, you need to prepare the host and accessories (screws, power cables, network cables, etc.), fix the host in the selected position (such as a 19-inch rack or wall mount), connect the AC 220V power cable, 2 RJ45 network port network cables, 1 USB device cable, 1 serial camera cable according to the logo, and connect 8 RS485, 4 DB9 and 1 RJ45 RS232 serial port to the sensors and other peripherals, 8 DI inputs, 3 AI inputs, 1 12VDC and The DO output of the 2-way relay is also connected as required, power on to check the status of 3 indicator lights, enter the default IP with IE browser to log in to the embedded WEB interface, complete the basic configuration of network, protocol, alarm, etc., and finally simulate various signals for functional testing.
