1.Product Introduction
ROC-X can provide working power for various sensors, and can use the built-in backup power supply to independently supply power to the host and sensors in the state of power outage, and can directly use IE browser for monitoring and management. stations, box substations and other places.
2.Product Parameter (Specification)
| Specification Model | ROC-X Series | Cloud Platform | China Mobile OneNet IoT Platform |
| System Architecture | ARM | Mobile Terminal | WeChat Mini Program |
| OS | Linux | USB Interface | 1 USB Interface |

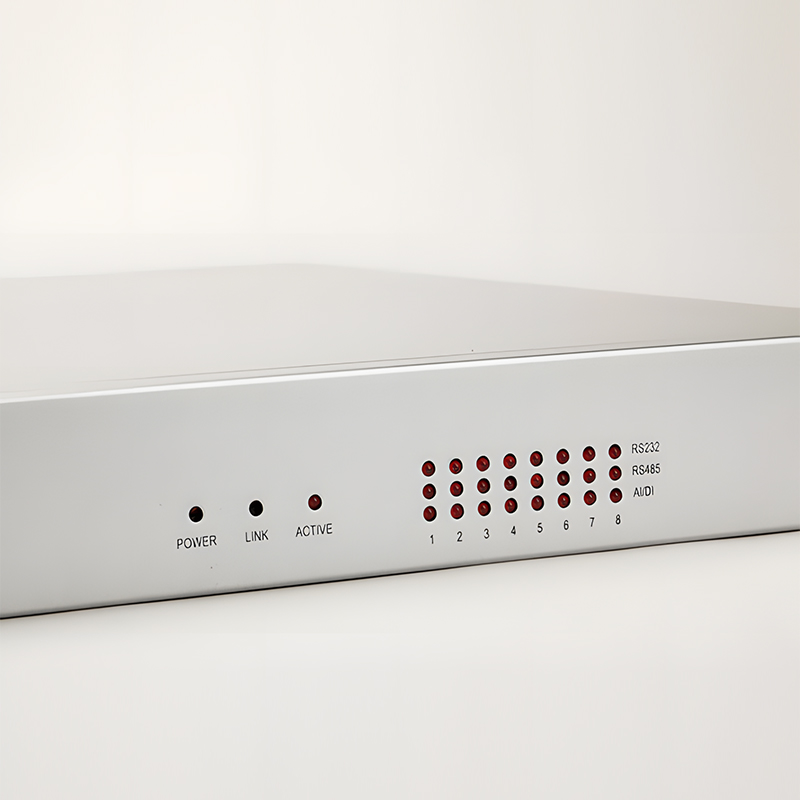

| Monitoring Software | Smart Equipment Room Platform Software V1.0 | Indicators | 3 (Power, System Operation, Fault) |
| Built-in Services | WEB, FTP, TELNET, SOAP, REST | Power Supply | AC 220V; built-in 72W/30min backup lithium battery (optional) |
| Built-in Protocols | Interface B, IEC 61850, Guangming 104; supports telecom/railway/power/iron tower platforms | Dimensions | 433mm×320mm×26mm |
| Network Interfaces | 2×10M/100M/1000M adaptive (RJ-45) | Operating Env. | Temp: -10℃~70℃; Humidity: 10%~95% (non-condensing) |
| Serial Interfaces | 12 channels (RJ45, 12VDC; RS485/RS232 optional) | Weight | 2.5Kg |
| DI Inputs | 8-channel optocoupler isolated digital inputs (RJ-45, 12V) | Certifications | CE, FCC, ROHS |
| SMS Interaction | Alarm confirmation, arming, disarming, relay control | Product Selection | ROC-X10, ROC-X20 |
3.Product Feature And Application
ROC-X is suitable for government, electric power, military, banking, telecommunications, education, hospitals, airports, railways, factories, hotels, warehouses, transportation and other industries, and is designed for the integrated monitoring of power, environment, security and network in computer network rooms, communication rooms, communication base stations, power base stations, substations, residential distribution stations, UPS rooms, battery pack rooms, outdoor cabinets, unattended sites, warehouses and other scenarios.
4.Product Details

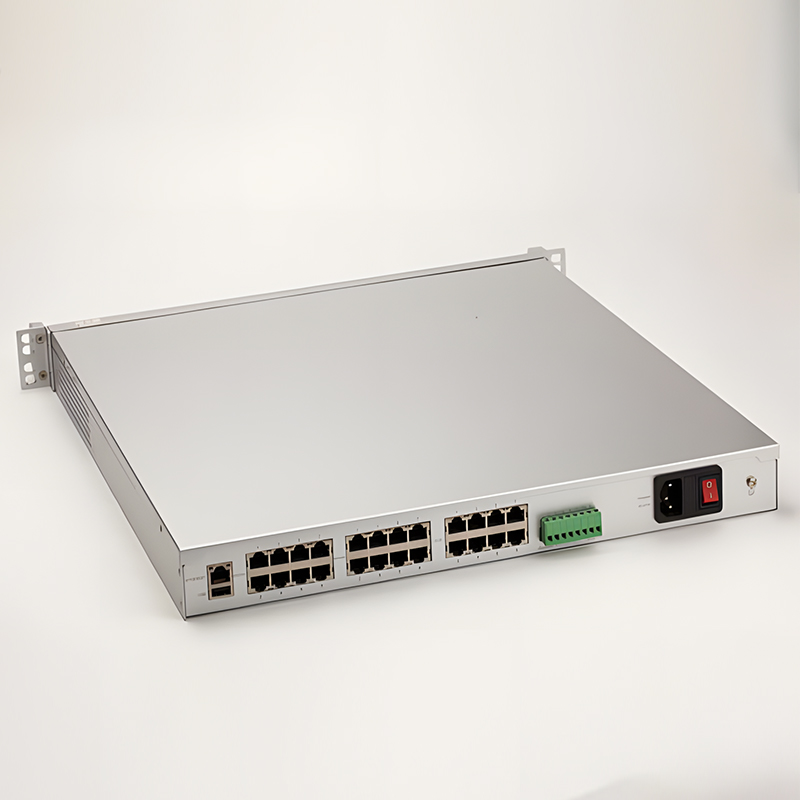

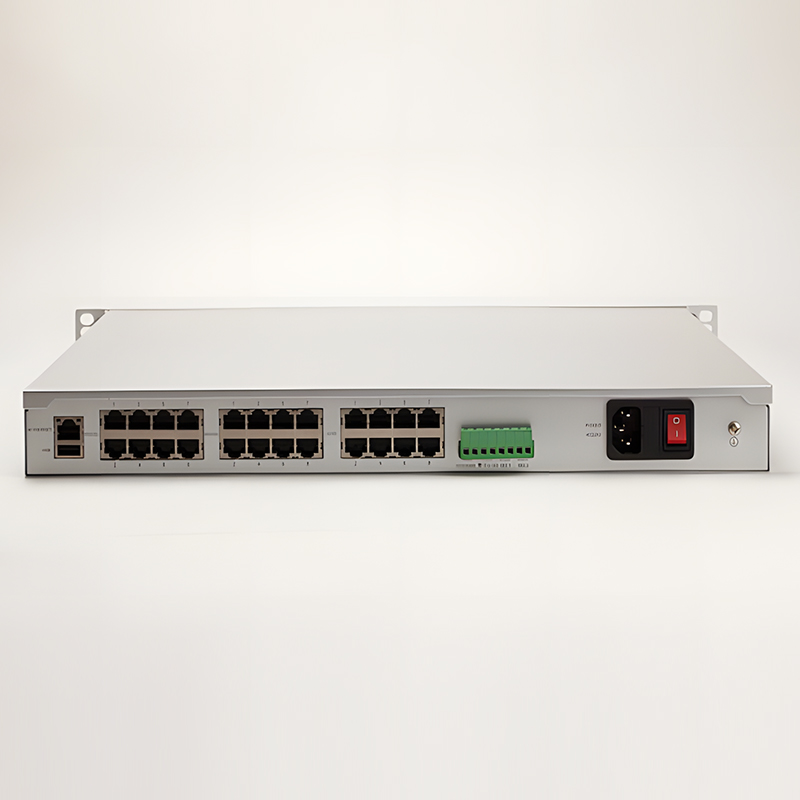

The ROC-X series is an industrial-grade monitoring device with integrated hardware and software, using a low-power 32-bit Freescale ARM embedded chip, with Linux operating system, 32G eMMC storage and support for TF card expansion, equipped with dual network ports (flexible networking/cross-platform integration) and 1 USB interface, and 12 RJ45 serial ports (with 12VDC power supply, RS485/RS232 optional) with CE, FCC, ROHS certifications.
5.Deliver,Shipping And Serving
If the regular model (ROC-X10/ROC-X20) is in stock, it can be shipped within 3-5 working days after the order is confirmed and payment is completed, and a 2-year free warranty is provided from the date of delivery of the device, including a 1-year warranty period for the backup lithium battery.
6. How to install?
To install the ROC-X all-in-one software and hardware monitoring machine in the installation room, you need to prepare the equipment, accessories and tools and select the installation position, then fix the bracket and host, then connect the power supply, network and peripherals, check the indicator light after powering on and configure the network through the WEB / mini program / platform, and finally simulate the collection of data to verify the upload and alarm functions.
