1.Product Introduction

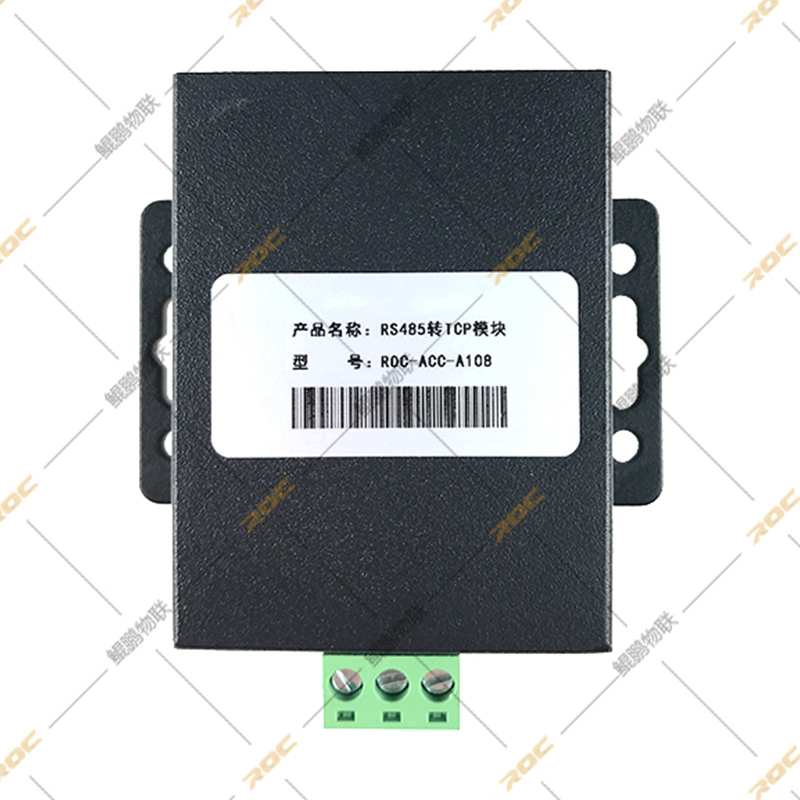

As a single-serial server, the RS485 to TCP/IP communication converter ROC-ACC-A108 realizes direct transparent data transmission between the RJ45 network port and the RS485 interface. It adopts ARM processor, which has the advantages of low power consumption, high speed, and high stability. The TCP/IP protocol stack is integrated internally, which can complete the network functions of various embedded devices. The interfaces of intelligent devices such as UPS and precision air conditioners can be converted to facilitate network access and realize network monitoring.
2.Product Parameter (Specification)
| Product Model | ROC-ACC-A108 |
| Software |
Virtual Serial Port: Windows 2000 or higher Configuration Methods: Upper Computer Setting Software, Serial Port Commands, Built-in Webpage |
| Processor | ARM |
| Basic Parameters |
Dimension: 716025mm Operating Temperature: -25～75℃ Storage Temperature: -40～105℃, 5-95%RH (no condensation) Input Voltage: DC4.75-7.0V Operating Current: 150mA Power Consumption: ＜1W |
| Ethernet |
Number of Ports: 1 Interface Standard: RJ45 Speed: 10/100Mbps Auto-negotiation Protection: 2KV Electromagnetic Isolation, Shell Isolation Protection Network Protocols: IP, TCP, UDP, ARP, ICMP Buffer: Transmit 6Kbyte, Receive 4Kbyte |
| Product Certification | Third-Party Testing and Certification Report |
3.Product Feature And Application
RS485 to TCP/IP communication converter ROC-ACC-A108 is equipped with ARM processor, supports 10/100Mbps adaptive Ethernet (2KV electromagnetic isolation), DC4.75-7.0V power supply (power consumption <1W), can be configured through host computer software / serial port command / built-in web page, adapted to - 25~75°C working environment, can realize RS485 serial port device and TCP/IP network bidirectional data transmission, widely used in industrial automation, power monitoring, Ethernet access to serial port devices in smart devices and other scenarios.
4.Product Details

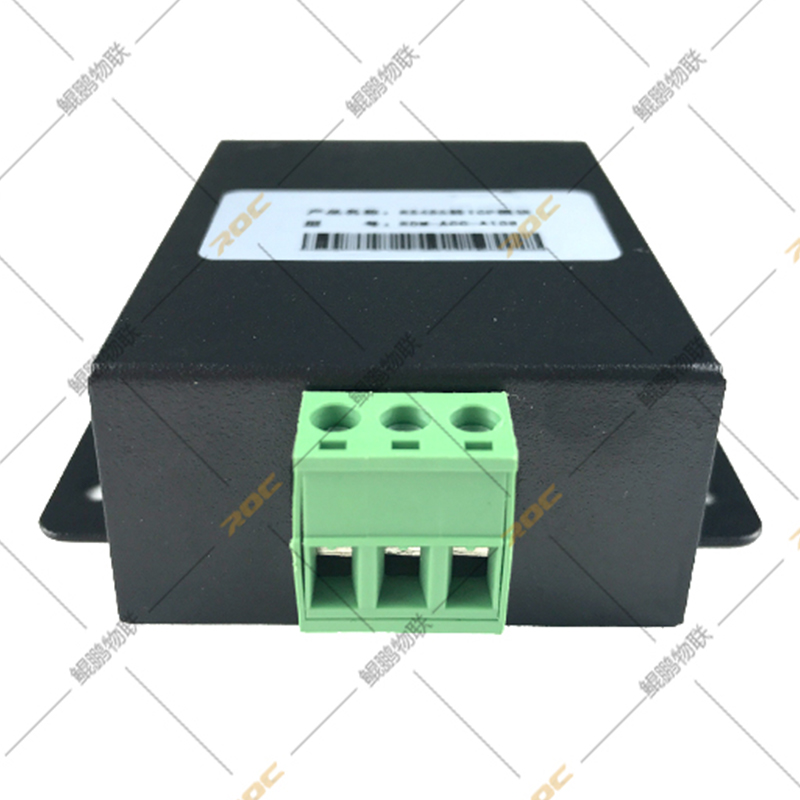

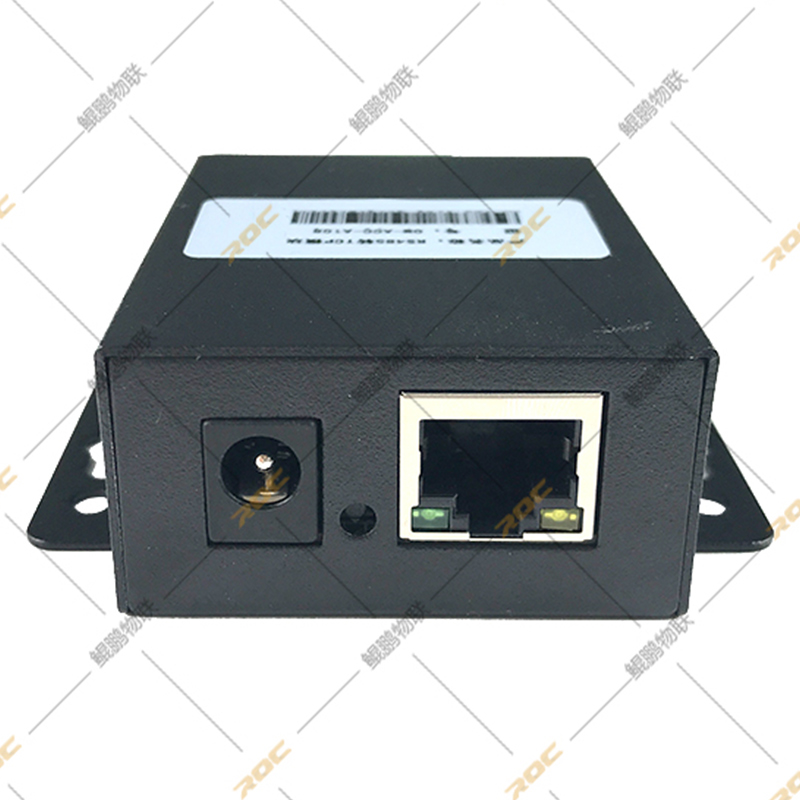

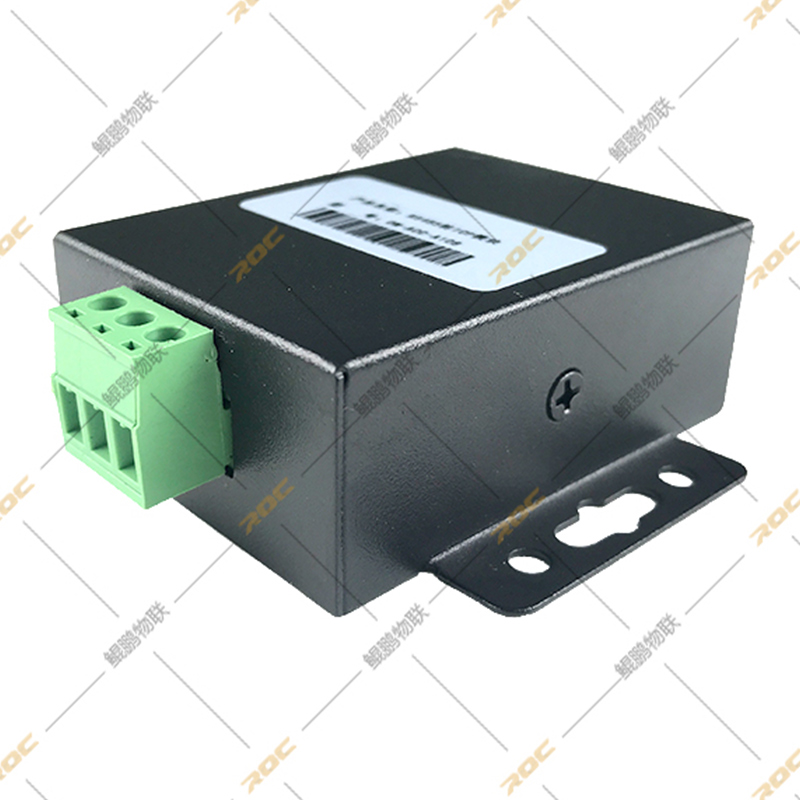

This product RS485 to TCP/IP communication converter ROC-ACC-A108 has a built-in microprocessor and a rugged industrial metal housing, with watchdog function and data transparent transmission chip, supports 10/100Mbps adaptive Ethernet (AUTO-MDIX automatic switching), TCP/UDP/HTTPD and other multiple working modes, 600bps-230.4Kbps custom baud rate (5 kinds of checks), heartbeat pack / registration package mechanism, can be used through web / serial port / Network protocol setting parameters, including DHCP, modifiable MAC (factory unique), DNS function, TCP Server with up to 16 clients (customizable), support software/hardware factory reset and network firmware upgrade, adapt to harsh environments and have strong versatility.
5.Deliver,Shipping And Serving
In terms of product delivery, spot orders will be delivered within 1-3 working days after payment, and customized needs will be delivered on time according to the agreed cycle, and the product certificate, user manual and calibration report will be included in the box. In terms of service, the product provides a 1-year free warranty from the date of receipt, and if there is a non-human fault during the warranty period, it can be repaired or replaced for free by phone, and can be remotely assisted in solving problems in installation, debugging and use.
6.How to install?
This product is fixed in the installation position through a rugged industrial metal housing, connected to RS485 devices and Ethernet (supports AUTO-MDIX automatic switching), after connecting to the power supply, through the web page, serial port or network protocol to complete the parameter configuration can be used, if necessary, through software/hardware factory reset or network upgrade firmware, the specific operation can be viewed by scanning the product shell QR code to view the video or refer to the user manual.
