1.Product Introduction
A small air quality monitoring station is an important environmental monitoring equipment that features small, real-time monitoring and accurate analysis. It can measure the concentration of a variety of pollutants and provide reliable air quality information, playing an important role in environmental protection, air quality monitoring, transportation, and other fields.
2.Product Parameter (Specification)
| Monitoring Parameters | 14 factors optional |
| Monitoring Cycle | 60S |
| Operating Environment | -20℃~70℃, 0~90%RH (no condensation) |
| Power Supply | AC220V or DC12V; DC12V can be powered by solar energy |
| Communication Method | 4G, Wifi |
| Protective Box Dimension | 340mm200mm460mm |
| Sensor Lifetime | 1 year |
| Equipment Lifetime | 3 years |
| Zero Drift | ≤±5%FS/6h |
| Span Drift | ≤±5%FS/6h |
| Repeatability | ≤±5%FS |
| Installation Method | Column mounting |
| Column Dimension | Optional: 3 meters or 1.5 meters |
| Installation Environment | Outdoor open area |
| Housing Material | Sheet metal |
| Protection Level | IP65 (with TV58000V lightning protection, surge protection and transient wave protection) |
3.Product Feature And Application
The small air quality monitoring station supports 14 elements optional monitoring (cycle 60S), with -20°C~70°C wide temperature operation, IP65 protection (including lightning protection and surge protection), 4G/Wifi communication and solar power supply adaptation capabilities, sensor life of 1 year, equipment life of 3 years, can be installed on columns (3 meters/1.5 meters optional) in outdoor open space, widely used in communities, parks, traffic lines, scenic spots and other areas of air quality real-time monitoring and data reporting, helping refined environmental control and pollution traceability.
4.Product Details

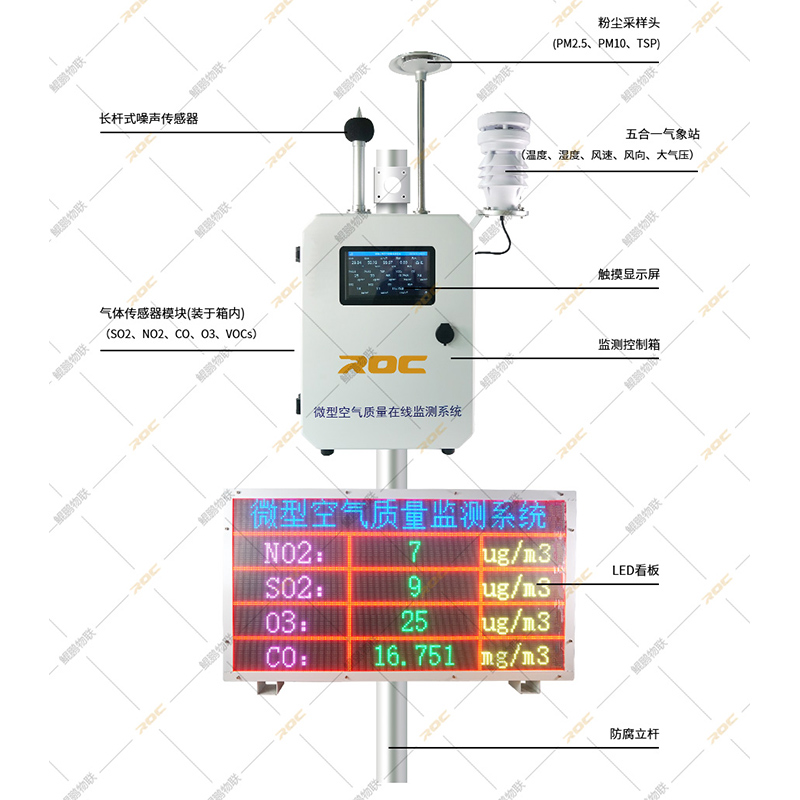

The small air quality monitoring station supports 14 elements of optional monitoring (period 60S, zero/span drift ≤±5%FS/6h, repeatability≤±5%FS), working temperature -20°C~70°C, protection level IP65 (including TV58000V lightning protection and surge protection), AC220V/DC12V (adapted to solar energy) power supply, 4G/Wifi communication, protective box size 340mm*200mm*460mm, using 3 meters/ The 1.5-meter optional column is installed in the open outdoor area, with a sensor life of 1 year and an equipment life of 3 years, which can accurately capture pollutant changes and upload data in real time.
5.Deliver,Shipping And Serving
In terms of product delivery, spot orders will be delivered within 1-3 working days after payment, and customized needs will be delivered on time according to the agreed cycle, and the product certificate, user manual and calibration report will be included in the box. In terms of service, the product provides a 1-year free warranty from the date of receipt, and if there is a non-human fault during the warranty period, it can be repaired or replaced for free by phone, and can be remotely assisted in solving problems in installation, debugging and use.
6.How to install?
When installing a small air quality monitoring station, it is necessary to first choose an open, unobstructed, outdoor site away from pollution sources and strong electromagnetic interference (such as near transformers), if multiple equipment are installed at the same time, the east-west interval is not less than 4 meters, and the north-south interval is not less than 3 meters; Then use expansion screws to fix the 3-meter or 1.5-meter column on the finished cement foundation, install the protective box with a size of 340mm*200mm*460mm on the column, power supply module (AC220V mains power or DC12V solar power supply) and 4G/Wifi communication line, wind direction sensor pay attention to the south and north, rain sensor away from the bracket, etc., after the installation is completed, debug and calibrate to ensure the normal operation of the equipment, For specific operations, you can view the video or refer to the user manual by scanning the QR code of the product shell.
