1.Product Introduction
This product has high-definition display effect and sensitive touch function, supports intuitive human-computer interaction, adapts to industrial control, equipment monitoring, intelligent terminals and other scenarios, can easily realize parameter setting, data viewing and operation control, and provides a clear and efficient visual operation interface for various systems.
2.Product Parameter (Specification)
| Parameter | Data | Description |
| Display Type | TFT | - |
| Resolution | 800*600 | - |
| Color | 65K (65536 colors) | - |
| Display Size | 162.0mm (Width) × 121.5mm (Height) | - |
| Touch Screen Type | 4-wire Resistive Touch Screen | - |
| Backlight Type | LED | - |
| Backlight Brightness | 300nit | Adjustable in 64 levels |
| SD Card Interface | SD/SDHC | - |
3.Product Feature And Application
LED high-definition touch screen ROC-ACC-A103 adopts 800*600 resolution TFT display (65K color, 162.0mm× 121.5mm display size), with 300nit adjustable 64-level brightness LED backlight and 4-wire resistive sensitive touch, with SD/SDHC interface, suitable for industrial control, equipment monitoring and other scenarios, providing clear display and convenient human-computer interaction.

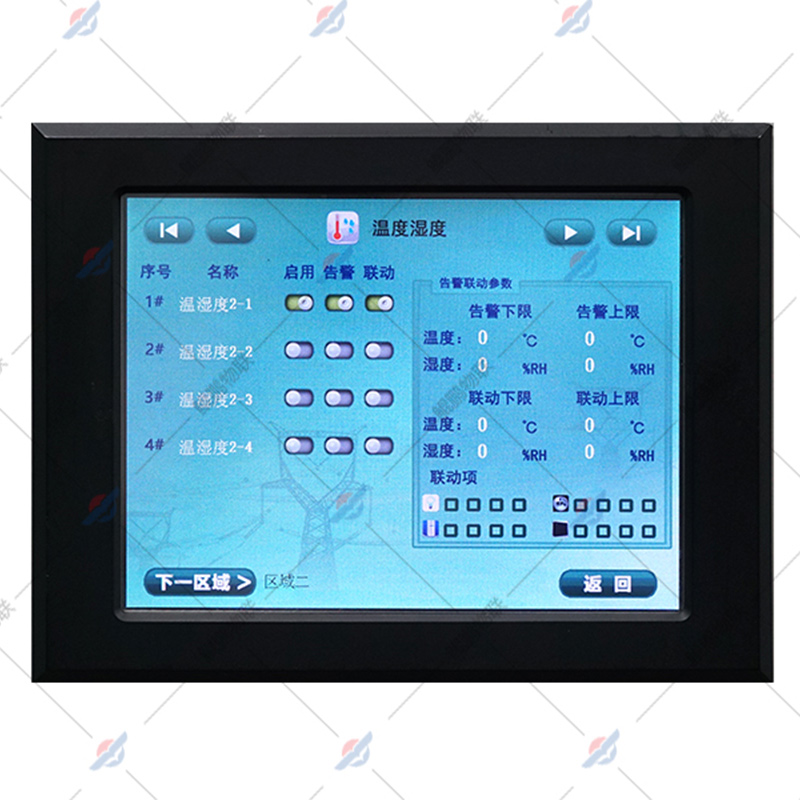

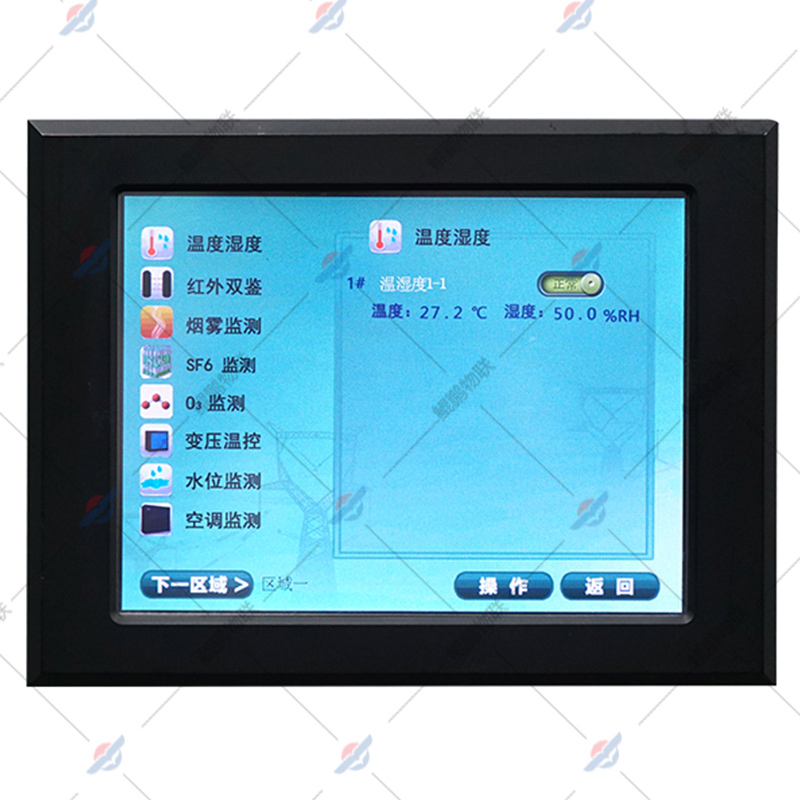

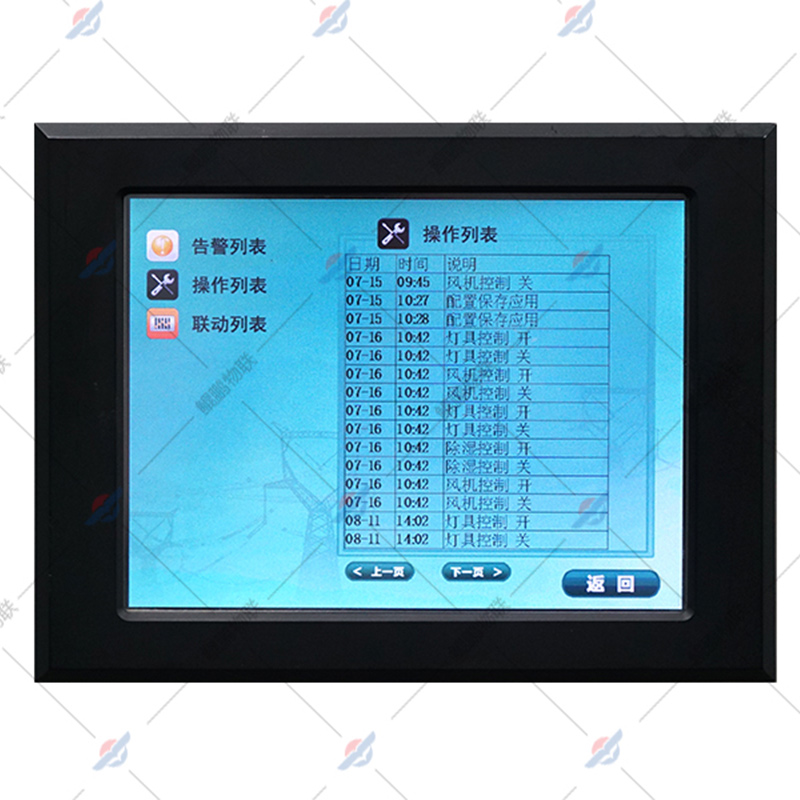

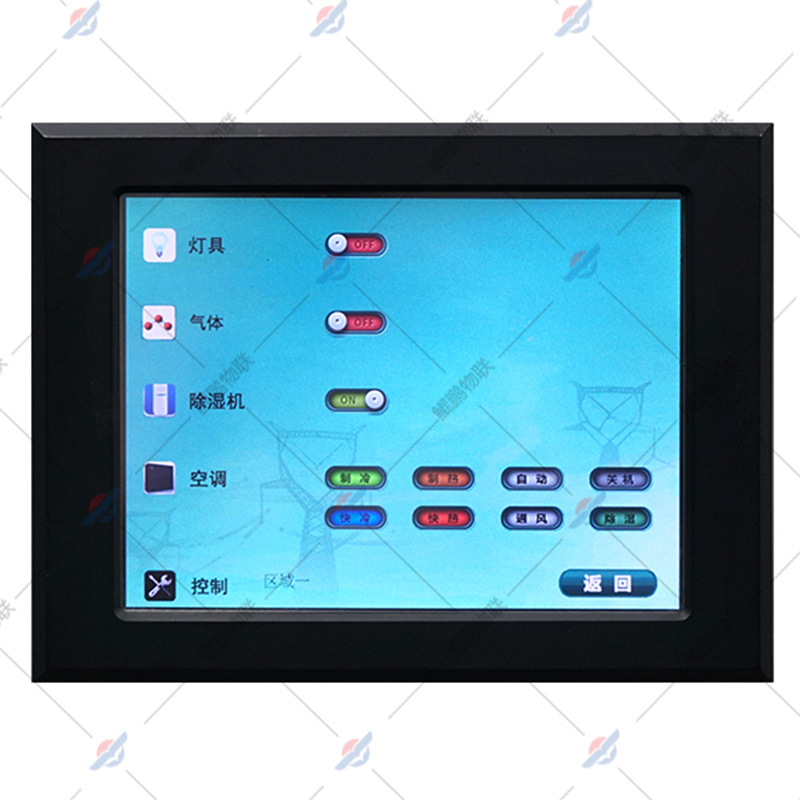

4.Product Details
In terms of touch interaction, this product is equipped with a 4-wire resistive touch screen, which has sensitive touch response and accurate positioning, supports basic operations such as clicking and swiping, and can complete interactive actions such as parameter setting and data query without additional keyboards and mice, reducing the complexity of operation. The backlight system adopts LED type, with a default brightness of 300nit and supports 64 levels of brightness adjustment, which can be flexibly switched according to the usage environment (such as strong light in industrial workshops and low light scenes in indoor areas), avoiding the problem of bright light glaring or low light that cannot be seen clearly, and ensuring a comfortable visual experience throughout the day.
5.Deliver,Shipping And Serving
In terms of product delivery, spot orders will be delivered within 1-3 working days after payment, and customized needs will be delivered on time according to the agreed cycle, and the product certificate, user manual and calibration report will be included in the box. In terms of service, the product provides a 1-year free warranty from the date of receipt, and if there is a non-human fault during the warranty period, it can be repaired or replaced for free by phone, and can be remotely assisted in solving problems in installation, debugging and use.
6.How to install?
First, determine the stable, good visibility, dry and ventilated installation position according to the usage scenario, and fix it firmly with screws, then carefully place the LED high-definition touch screen ROC-ACC-A103 on the bracket, align the screws at the hole position, connect the power cord and necessary signal cables, and ensure that the plug is plugged in tightly; After completing the line connection, connect the power supply, complete the screen brightness, contrast and other basic parameters and possible function settings debugging through the operation interface according to the equipment instructions, test the touch operation and display effect of the 4-wire resistive touch screen, if you need to interact with external devices, you also need to make corresponding adaptation settings, the specific operation can be viewed by scanning the QR code of the product shell to view the video or refer to the user manual.
