1.Product Introduction

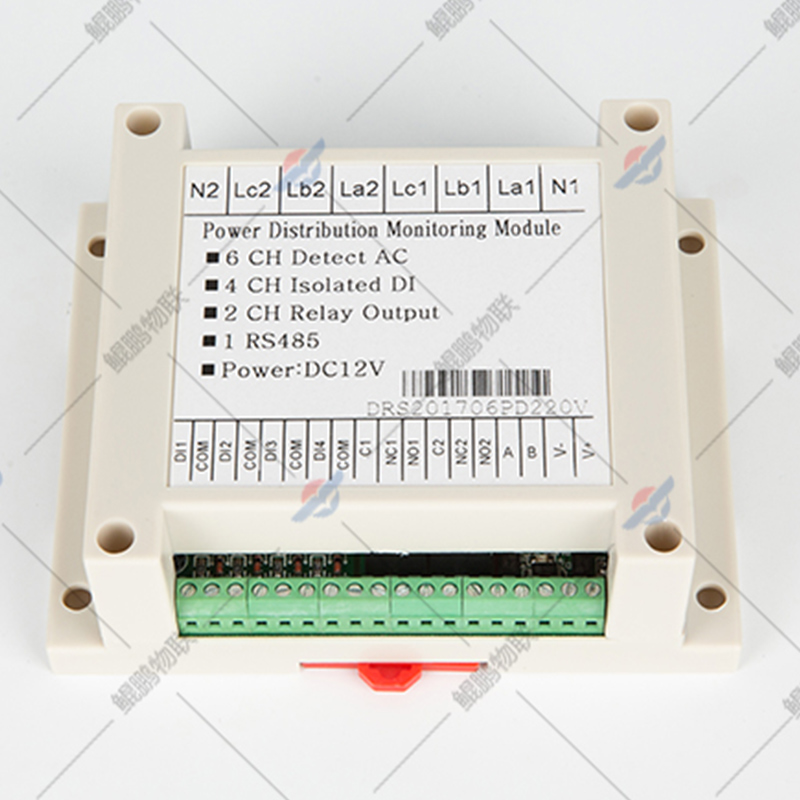

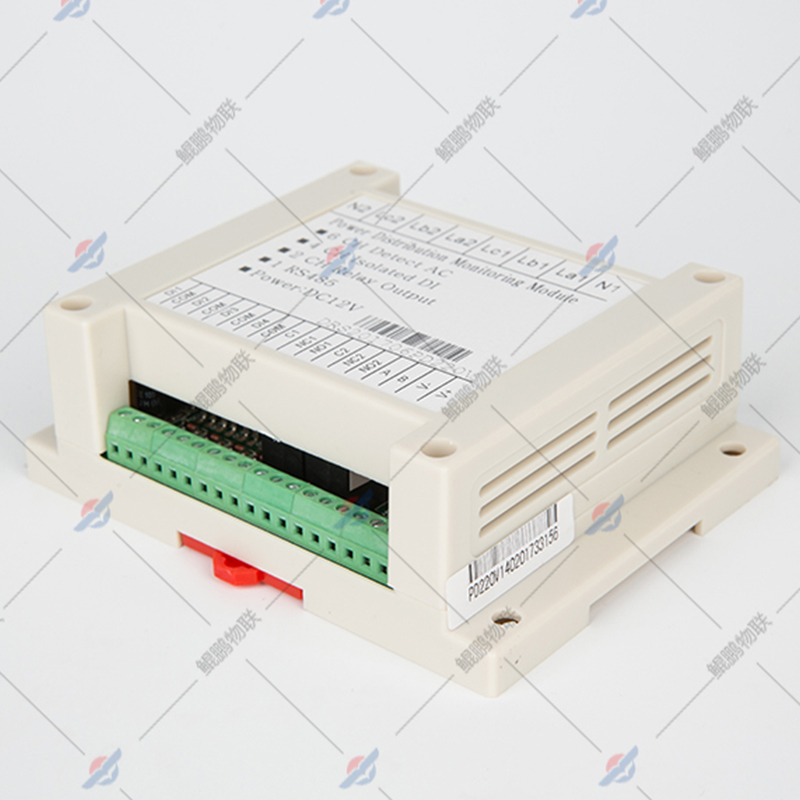

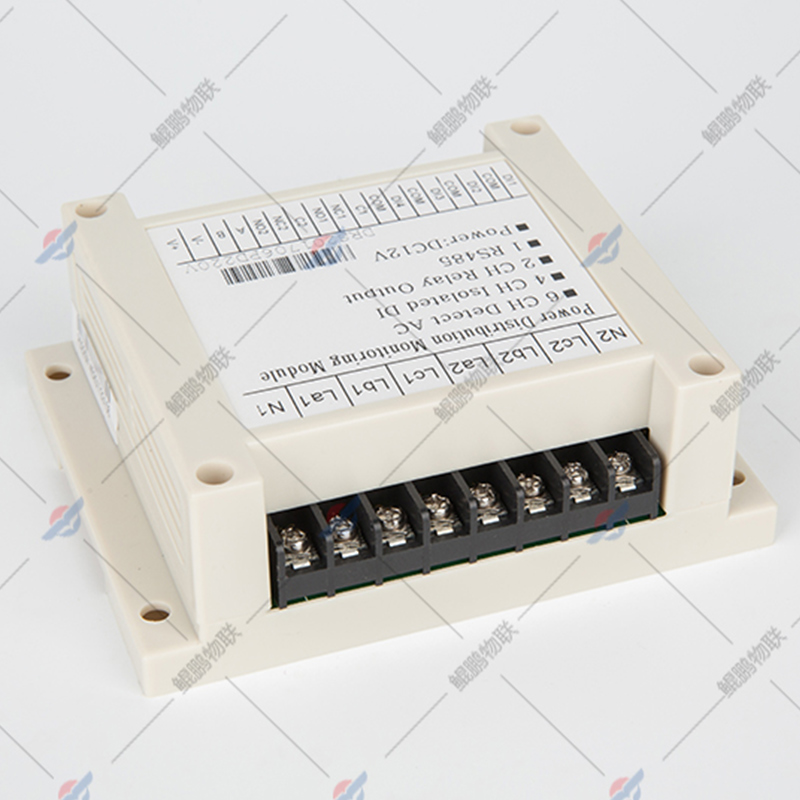

The function of the intelligent distribution monitor ROC-ACM-A601 is to convert the 220V AC voltage of the distribution switch into a switch signal, and connect with the remote monitoring server through the RS-485 interface to monitor the on/off status of the distribution switch. And it can control the distribution switch emergency trip and realize remote control of lights through 2 relay outputs.
2.Product Parameter (Specification)
| Product Model | ROC-ACM-A601 |
| Communication Interface | RS485 with MODBUS-RTU standard protocol; DLT645 protocol optional |
| Baud Rate | Default: 9600; Optional: 2400, 4800, 9600; Data format: N, 8, 1 |
| Power Supply | 12VDC |
| Switch Input (Conversion) | 160VAC - 240VAC |
| Switch Accuracy | 100% accurate |
| Relay Output | 3A/AC250V MAX |
| Isolation Voltage | 3000V |
| Module Size | 95×90×30mm |
| Certification | Third-party test report |
3.Product Feature And Application
With its long-distance communication, multi-functional acquisition and control, and reliable industrial-grade design, the intelligent power distribution monitor ROC-ACM-A601 is suitable for a wide range of scenarios, mainly including industrial plant power distribution systems, commercial building power distribution scenarios, residential community power distribution facilities, data center auxiliary distribution circuits, and various small and medium-sized power distribution stations, etc., which can meet the needs of real-time monitoring, safety control and flexible expansion of power distribution systems in different scenarios.
4.Product Details
The intelligent power distribution monitor ROC-ACM-A601 product model is ROC-ACM-A601, the communication interface supports RS485 MODBUS-RTU standard specification (optional DLT645 specification), the default baud rate is 9600 (optional 2400, 4800) and the data format is N, 8, 1, the power supply is 12VDC, the switching input range is 160VAC-240VAC and the switching accuracy is 100%, and the relay output is up to 3A/ AC250V, isolation voltage 3000V, module size 95×90×30mm, with third-party test report certification.
5.Deliver,Shipping And Serving
In terms of delivery of intelligent power distribution monitor ROC-ACM-A601, the spot order will be delivered within 1-3 working days after payment, and the customized needs will be delivered on time according to the agreed cycle, and the product certificate, user manual and calibration report will be included in the box. In terms of service, the product provides a 1-year free warranty from the date of signing and receipt, and if there is a non-human fault during the warranty period, you can repair or replace accessories for free, and you can call and remotely assist in solving problems in installation, commissioning and use, so as to ensure the stable operation of the equipment in power cabinets, distribution boxes and other scenarios.
6.How to install?

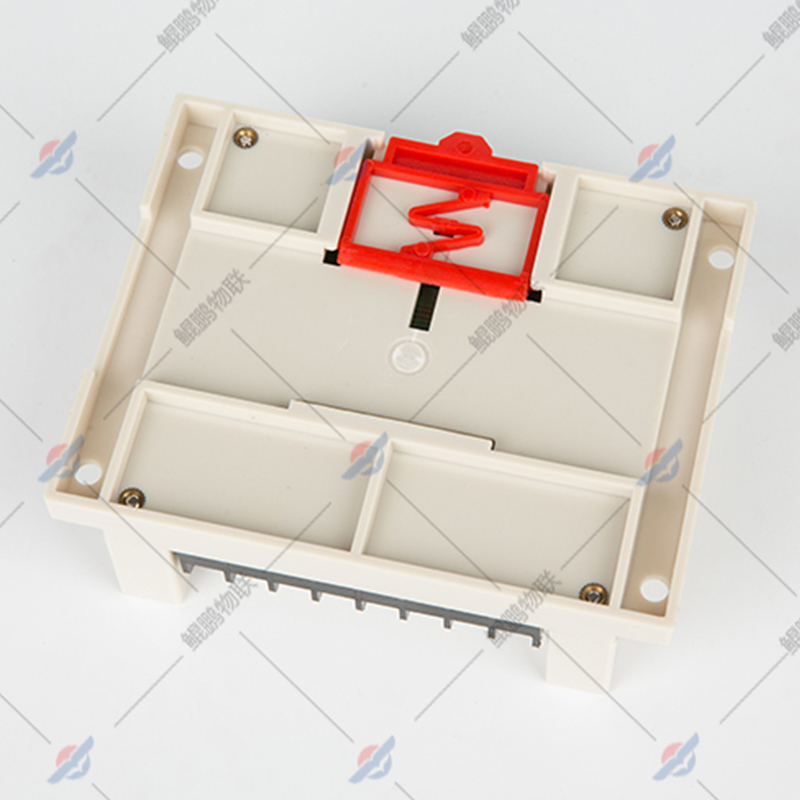

When the intelligent power distribution monitor ROC-ACM-A601 is installed, it needs to be fixed according to the manual, and the 12VDC power supply, RS485 communication line, switching input line and relay output line are connected through the professional industrial terminal, and the corresponding baud rate can be put into use after setting.
