1.Product Introduction

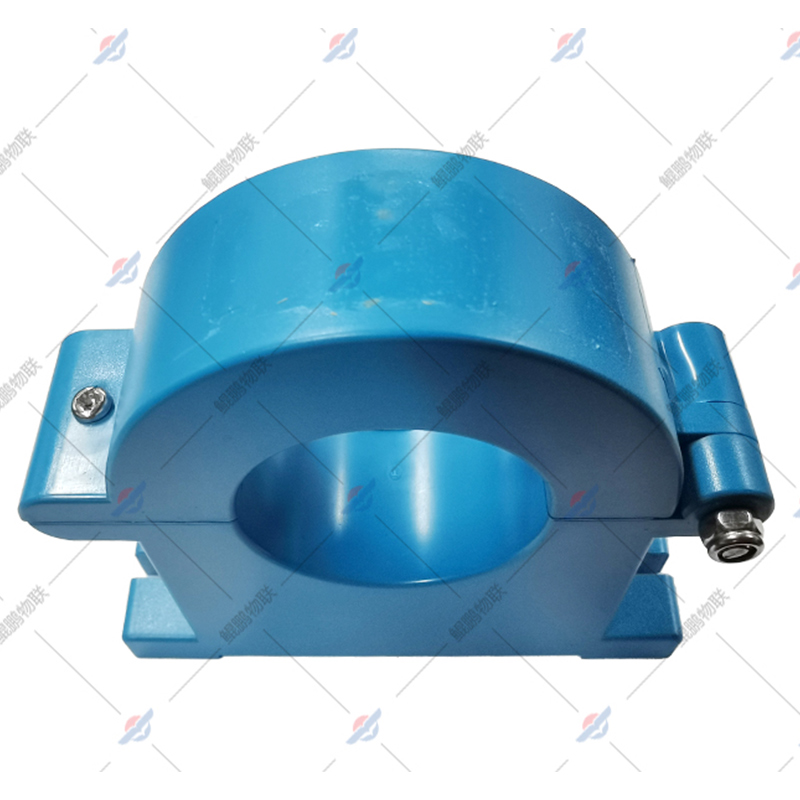

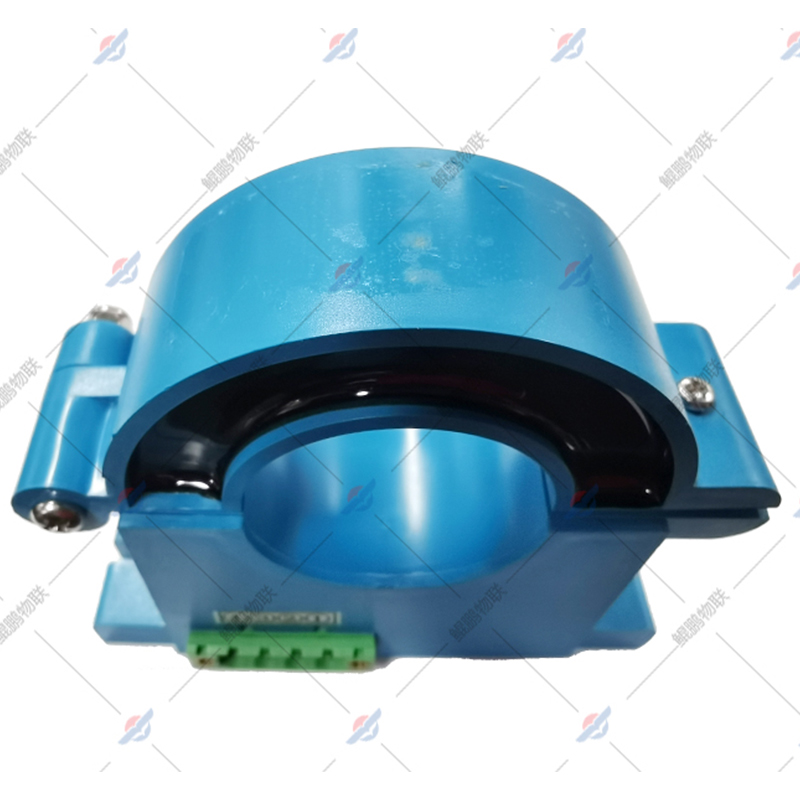

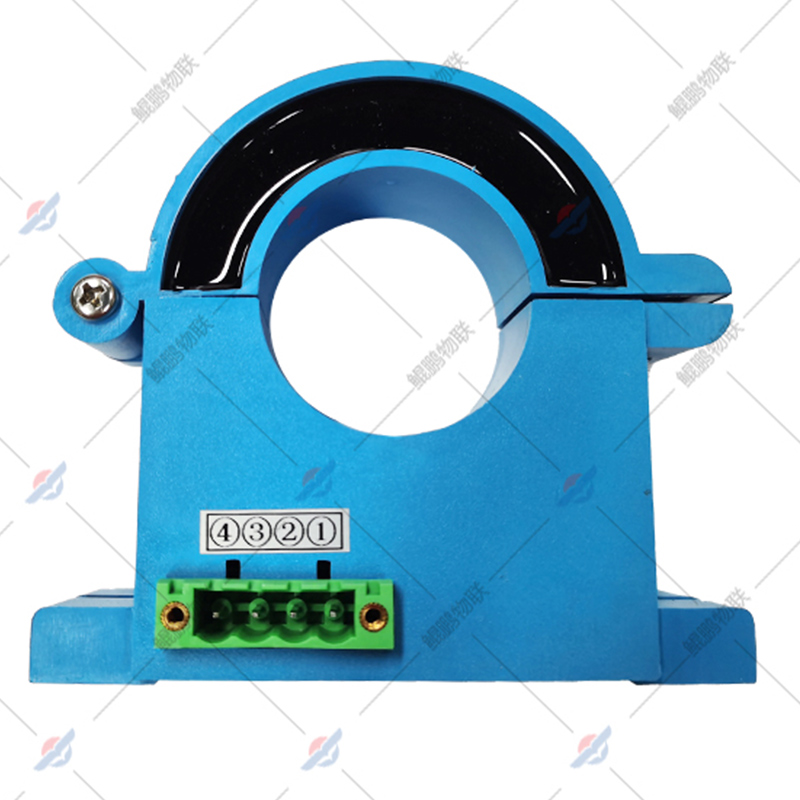

Hall current sensor ROC-BAT-L601-100 is a current detection equipment using the principle of open-loop (direct test) Hall effect, which has the advantages of high isolation between the primary and secondary sides, good linearity, frequency bandwidth, fast response, strong overload capacity, excellent temperature characteristics and stable performance, without losing the energy of the circuit being tested, and also adopts a detachable folio structure for easy installation, which can measure DC, AC, pulse and other arbitrary waveform current and voltage, and is widely used in frequency conversion devices, inverters, power supplies, welding machines, Electric locomotives and other scenarios that require current monitoring and protection.
2.Product Parameter (Specification)
| Specifications | Details |
| Rated Input | 50A; 100A; 200A; 300A; 500A; 800A; 1000A; 1500A; 2000A; Customer-specified |
| Rated Output | 1V, 5V, 10V, DC 0~20mA, DC 4~20mA, RS485 output; (Tracking output, Average output, True RMS output); Switch output (Relay, Transistor high/low level, Optocoupler); Customer-specified |
| Auxiliary Power Supply | DC+5V; DC+12V; DC+15V; DC+24V; DC±12V; DC±15V; DC3.3V; Wide voltage - DC12~36V, DC15~36V; DC6.5~36V; Customer-specified |
| Response Time | <20μS (Tracking output); <250mS (Average output, True RMS output) |
| Load Capacity | Voltage output - 5mA; Current output - 6V |
| Accuracy | 0.5%; 1.0% |
| Overload Capacity | 2 times the nominal input, sustainable |
| Isolation Withstand Voltage | 3KV/50Hz/2mA/1Min |
| Offset Voltage | ≤20mV |
| Temperature Drift | ≤200PPM/°C (After compensation) |
| Di/dt Tracking Accuracy | >50A/μS (Tracking output) |
| Linearity | 0.5% |
| Frequency Bandwidth | DC~20KHz |
| Current Consumption | <25mA + Output current |
| Operating Temperature | -20°C ~ +80°C |
| Storage Temperature | -25°C ~ +85°C |
3.Product Feature And Application
Hall current sensor ROC-BAT-L601-100 has the characteristics of high isolation between the primary and secondary sides, good linearity, frequency bandwidth, fast response, strong overload capacity, excellent temperature characteristics and stable performance (no loss of measured circuit energy), and detachable folio structure (flat screw fixation, easy installation), which is widely used in frequency conversion devices, inverters, power supplies, welding machines, electric locomotives, CNC machine tools, electrolytic plating equipment, templators, electric motors and other scenarios that require current monitoring and protection.
4.Product Details
Hall current sensor ROC-BAT-L601-100 adopts the open-loop Hall effect principle, supports 50A-2000A (customizable) rated input, multiple types of output (such as DC4~20mA/RS485) and multi-specification auxiliary power supply (customizable), with an accuracy of 0.5%/1.0%, isolation withstand voltage of 3KV, detachable folio installation, and can measure DC/AC/pulse current and voltage, which is suitable for many types of scenarios that need monitoring and protection.
5.Deliver,Shipping And Serving
In terms of delivery of Hall current sensor ROC-BAT-L601-100, the spot order will be delivered within 1-3 working days after payment, and the customized needs will be delivered on time according to the agreed cycle, and the product certificate, user manual and calibration report will be included in the box. In terms of service, the product provides a 1-year free warranty from the date of receipt, and if there is a non-human fault during the warranty period, it can be repaired or replaced for free by phone, and can be remotely assisted in solving problems in installation, debugging and use.

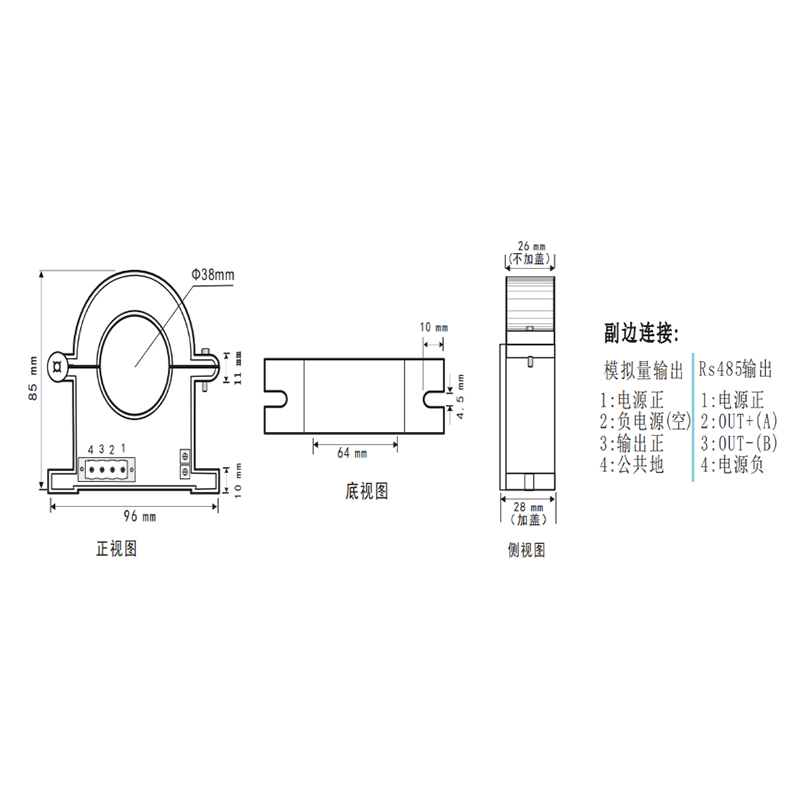

6.How to install?
When this product is installed, first turn off and disconnect the power supply, away from electromagnetic interference and the current flows near the wire, use a bracket or bolt to fix the sensor with a detachable folio structure, connect its input and output terminals with adaptive wires according to the interface type (input termination current source, output terminal to read device), calibrate according to the manual, check the wiring is correct and turn on the power supply, if it is used for AC power measurement needs to use bipolar power supply, the specific operation can be viewed by scanning the QR code of the product shell to view the video or refer to the user manual.
