1.Product Introduction
The intelligent alarm server ZY-B-04 is a multi-functional network-based intelligent alarm terminal that combines a variety of advanced technologies, including advanced GSM digital signal processing technology, high-end speech synthesis technology, stable and reliable embedded technology, network technology, and support for traditional telecommunications networks. It is specially designed for modern monitoring equipment to provide independent telephone, SMS, voice alarm, through the computer or other host computer to send simple commands to this device to realize the sending of text messages, making calls, text message query real-time information, etc., so that the host computer is completely free from the complicated hardware underlying operation.
2.Product Parameter (Specification)
| Product Model | ZY-B-04 | Antenna Interface | Standard SMA female antenna interface, characteristic impedance 50 ohms |
| System Architecture | ARM | Operating Power Supply | DC12V, 0.5A |
| Alarm Methods | SMS, Call, On-site Voice | Audio Output | 13.5mm audio plug; when the device makes a call, it can output voice to other external power amplifiers simultaneously |
| RS232 Port | 1 standard DB9 | Operating Environment | Temperature: -20℃ to 70℃; Humidity: 10% to 95% (no condensation) |
| RS485 Interface | 1 | Product Certification | CE, FCC, ROHS |
| Telephone Interface | 1, for connecting wired telephone |
3.Product Feature And Application
The intelligent alarm server ZY-B-04 adopts ARM architecture, DC12V/0.5A power supply, is equipped with SMA antenna interface, RS232/RS485 port and 3.5mm audio output, supports SMS/phone/on-site voice alarm, and can operate stably in -20°C~70°C environment.
It is suitable for government, electric power, military, banking, telecommunications, education, hospitals, airports, railways, factories, hotels, warehouses, transportation and other industries, and is designed for power, environment, security and network room monitoring and alarm in computer network rooms, communication rooms, communication base stations, power base stations, substations, residential distribution stations, UPS rooms, battery pack rooms, outdoor cabinets, unattended sites, warehouses and other scenarios.
4.Product Details

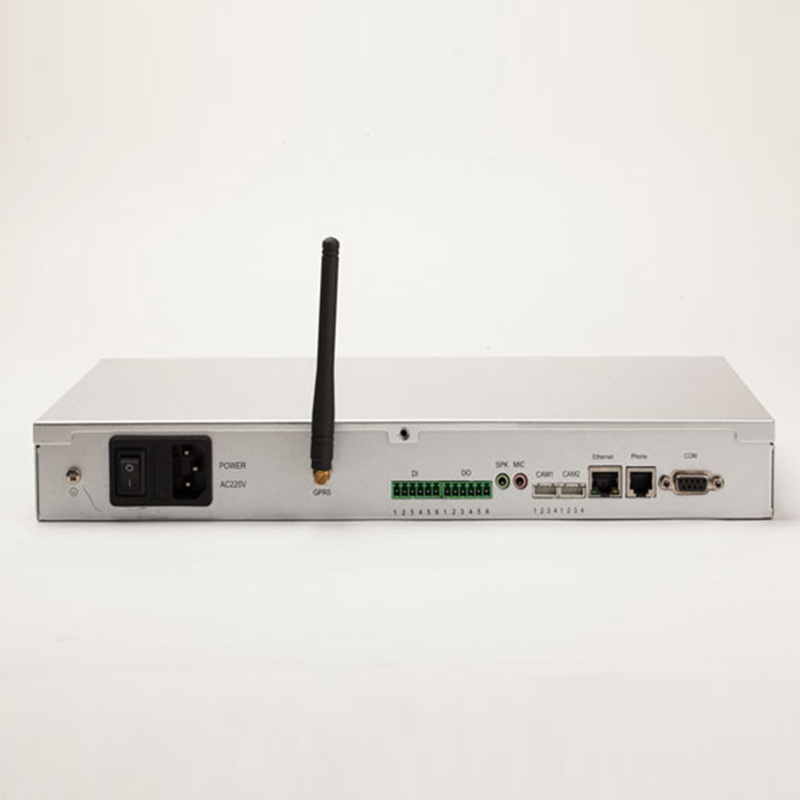

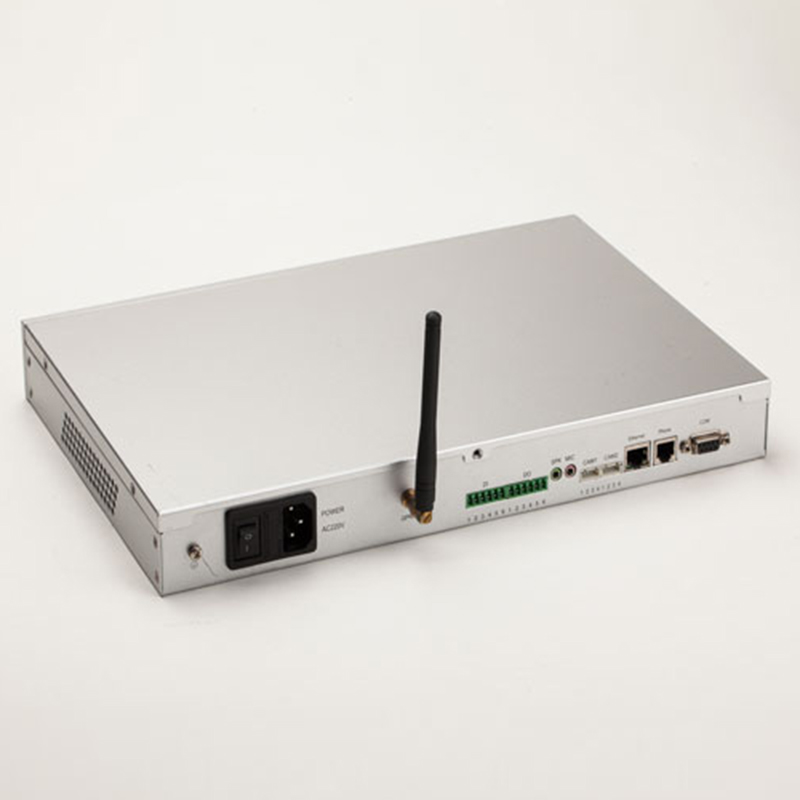

The exterior design of the intelligent alarm server ZY-B-04 has both industrial texture and practical aesthetics, the fuselage adopts a simple cuboid shape, the lines are neat and regular, and the shell is made of light gray matte material, which can not only effectively avoid fingerprint residues and slight scratches in daily use, but also can naturally integrate into the environmental atmosphere of various security scenarios such as monitoring rooms and equipment rooms, and will not be obtrusive. The fuselage is compact and moderately sized, light in the hand but solid, and the edges are finely rounded, which not only avoids possible bumps and scratches during installation operations, but also makes the overall vision softer.
The biggest feature is tailored for security scenarios: it is equipped with a stable ARM architecture, like a "smart brain", which can efficiently process various alarm signals; The power supply specification of DC12V/0.5A is like a "low-consumption and long-lasting heart", and there is no need to worry about excessive energy consumption for long-term operation.
5.Deliver,Shipping And Serving
Spot is always available, 1-3 working days after the order is paid, domestic relying on Yunda, postal and other express delivery to achieve door-to-door delivery, cross-border orders can assist in coordinating logistics resources and providing materials required for customs clearance, equipment is customized buffer packaging to reduce transportation loss, 1 year free warranty is provided from the date of receipt, if there are technical problems or equipment failures during use, you can contact the after-sales team at any time for support or maintenance.
6.How to install?
In order to help you easily complete the installation of the intelligent alarm server ZY-B-04, we have carefully prepared a comprehensive installation guide for you, with an exclusive QR code attached to the equipment shell or manual, and you can jump to the video page by scanning the code with your mobile phone, intuitively presenting each step of the installation operation, and the professionals will explain the key points and precautions while demonstrating, just like a technician guiding in person. If you encounter any problems during the installation, you can call the after-sales phone at any time, and our professional team will answer your questions and ensure the installation is completed smoothly.
7.Company Introduction
We are an enterprise deeply engaged in the R&D and production of environmental monitoring equipment, with many years of industry experience and technology accumulation, products and solutions are widely used in communications, power, transportation, finance and other industries, and have provided security customized solutions for 55 listed companies and more than 8,900 integrators from these fields.
