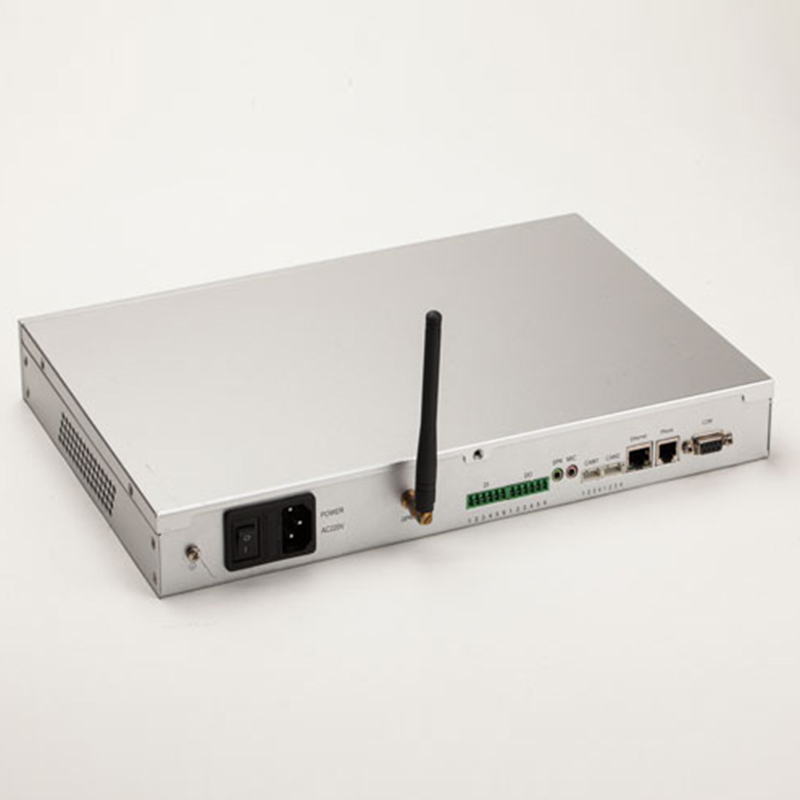

1.Product Introduction
The intelligent alarm server ROC-B-04 is a multi-functional network-based intelligent alarm terminal that combines a variety of advanced technologies, including advanced GSM digital signal processing technology, high-end speech synthesis technology, stable and reliable embedded technology, network technology, and support for traditional telecommunications networks. It is specially designed for modern monitoring equipment to provide independent telephone, SMS, voice alarm, through the computer or other host computer to send simple commands to this device to realize the sending of text messages, making calls, text message query real-time information, etc., so that the host computer is completely free from the complicated hardware underlying operation.
2.Product Parameter (Specification)
| Product Model | ROC-B-04 | Antenna Interface | Standard SMA female antenna interface, characteristic impedance 50 ohms |
| System Architecture | ARM | Operating Power Supply | DC12V, 0.5A |
| Alarm Methods | SMS, Call, On-site Voice | Physical Dimensions | 220mm×150mm×40mm |
| RS232 Port | 1 standard DB9 | Operating Environment | Temperature: -20℃ to 70℃; Humidity: 10% to 95% (no condensation) |
| RS485 Interface | 1 | Weight | 380g |
| Telephone Interface | 1, for connecting wired telephone | Product Certification | CE, FCC, ROHS |
| Audio Output | 1 3.5mm audio plug; when the device makes a call, it can output voice to other external power amplifiers simultaneously |
3.Product Feature And Application
The power supply of the intelligent alarm server ROC-B-04 is DC12V (0.5A), using a watchdog circuit to ensure that it never dies, with TTS text-to-speech function and RS232 connection for the host computer to send commands and interactions; Easy to install and low power consumption, energy-saving and environmentally friendly (standby 1.5W, maximum power 5W), can make calls and play voice through fixed telephone network and mobile phone network, stable and reliable, can work normally in -20°C~70°C environment 7×24h, can be widely used in shops, factory, community and other scenarios to achieve centralized processing and linkage output of alarm signals.
4.Product Details
The intelligent alarm server ROC-B-04 adopts ARM system architecture, the working power supply is DC12V (0.5A), equipped with a standard SMA negative antenna interface (characteristic impedance 50 ohms), and supports three alarm modes: SMS, phone call, and live voice; The device features 1 standard DB9 RS232 port, 1 RS485 interface, 1 wired telephone port, and 1 3.5mm audio plug, with physical dimensions of 220mm×150mm×40mm, and a weight of 380g; It can work stably in temperatures - 20°C to 70°C and humidity from 10% to 95% (no condensation).
5.Deliver,Shipping And Serving
Spot is always available, 1-3 working days after the order is paid, domestic relying on Yunda, postal and other express delivery to achieve door-to-door delivery, cross-border orders can assist in coordinating logistics resources and providing materials required for customs clearance, equipment is customized buffer packaging to reduce transportation loss, 1 year free warranty is provided from the date of receipt, if there are technical problems or equipment failures during use, you can contact the after-sales team at any time for support or maintenance.
6.How to install?
In order to help you easily complete the installation of the intelligent alarm server ROC-B-04, we have carefully prepared a comprehensive installation guide for you, with an exclusive QR code attached to the equipment shell or manual, which can be jumped to the video page by scanning the code with your mobile phone, intuitively presenting each step of the installation practice, and the professionals will explain the key points and precautions while demonstrating, just like a technician guiding in person. If you encounter any problems during the installation, you can call the after-sales phone at any time, and our professional team will answer your questions and ensure the installation is completed smoothly.
7.Company Introduction
We are an enterprise deeply engaged in the R&D and production of environmental monitoring equipment, with many years of industry experience and technology accumulation, products and solutions are widely used in communications, power, transportation, finance and other industries, and have provided security customized solutions for 55 listed companies and more than 8,900 integrators from these fields.
