1.Product Introduction

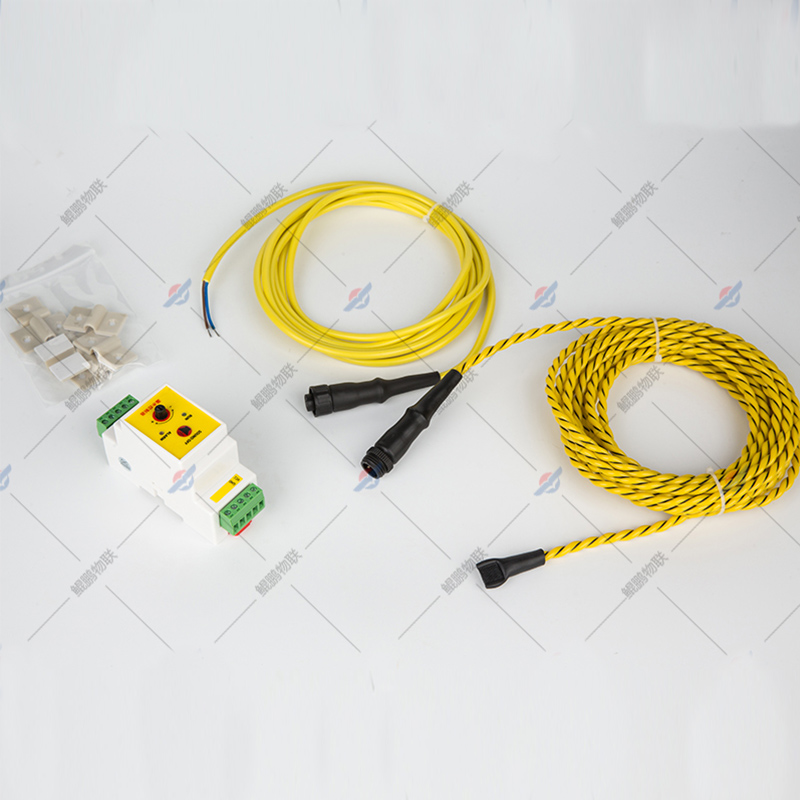

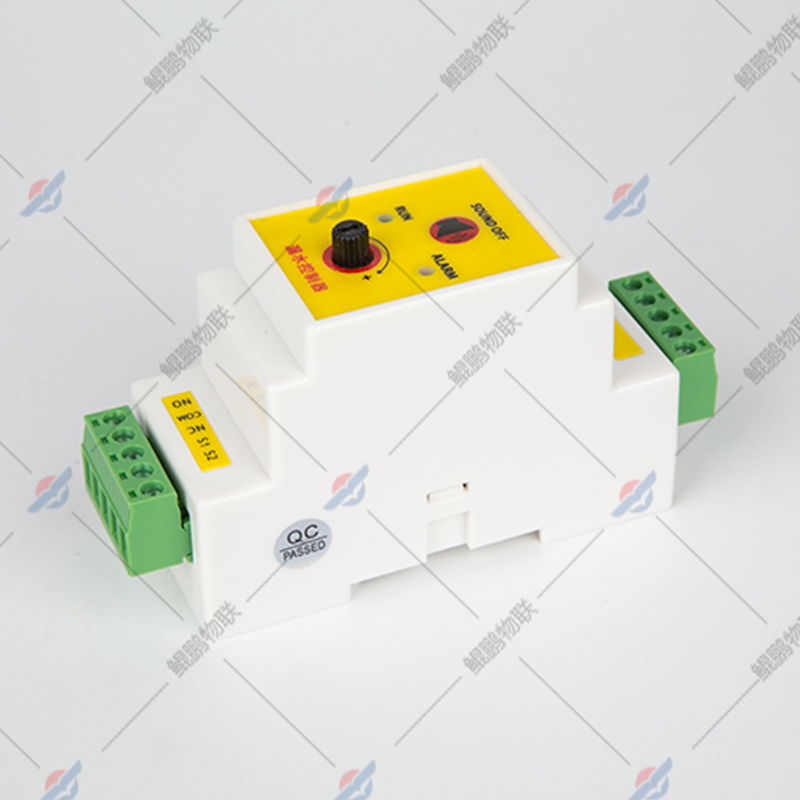

This product is a high-performance water leak detection device ROC-LDA-B801, which is suitable for use with two-core water leakage sensing cables, point sensors, and normally open dry contact devices (float control switches, optical probes with adapters, limit switches, etc.). The immersion monitoring device monitors sensing cables up to 500 meters long. Water leakage controllers are suitable for installation in conventional (non-hazardous) areas. The leakage controller has 2 small LED indicators (showing power and communication activity respectively) and SPDT type contact relays. The leakage controller can be used as an independent leak detection and alarm unit, or it can be used by networking the main control system (computer or control automation system) through simple shielded twisted pair RS-485 serial communication cabling.
2.Product Parameter (Specification)
| Product Model | ROC-LDA-B801 |
| Serial Interface | RS-485 two-wire network (for network configuration) |
| Communication Protocol | MODBUS |
| Sensor Compatibility | 2-core water leakage sensing cable, same-type liquid leakage detection cable or detection probe |
| Detection Cable Length | Maximum connectable cable length: 500 meters |
| Detection Sensitivity | Continuously adjustable |
| Response Time | < 1 second |
| Detected Water Types | Ordinary tap water, air conditioning water, fire water, etc. |
| Relay Output | Normally open / normally closed (selectable) |
| Operating Environment | Temperature: -20℃ to 50℃; Humidity: 5% to 90% (no condensation) |
| Storage Temperature | -40℃ to 60℃ |
| Rated Capacity | AC 250V, 3A; DC 30V, 3A |
| Operating Power Supply | DC 12V, 3W |
| Overall Dimensions | 80 80 30mm |
| EMC Standards | EFT (Electrical Fast Transient): Differential mode ±2KV; ESD (Electrostatic Discharge): Contact discharge ±6KV, Air discharge ±8KV |
| Material | White PVC |
| Weight | 150g |
3.Product Feature And Application
The area flood monitoring device ROC-LDA-B801 supports RS-485 two-wire network (MODBUS protocol), is compatible with two-core water leakage detection cable/detection probe (maximum cable length of 500 meters), has the characteristics of continuously adjustable detection sensitivity, response time <1S, relay output normally open and normally closed, powered by DC12V (3W) and can work in -20°C~50°C environment, widely used in computer rooms, distribution rooms, basements, warehouses and other scenarios to achieve ordinary tap water , air conditioning water, and fire water in real time.
4.Product Details

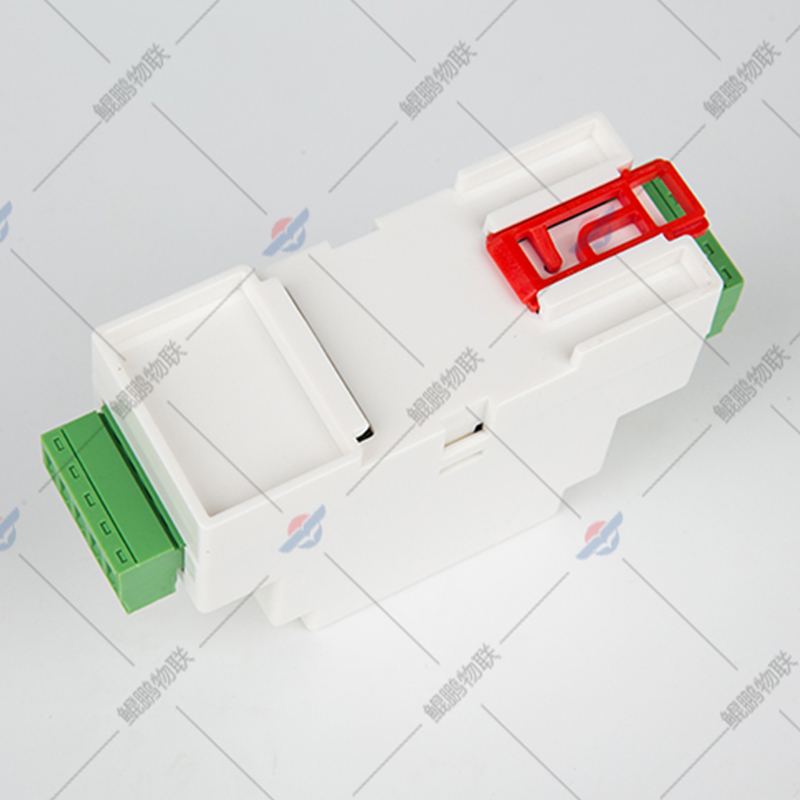

The area flood monitoring device ROC-LDA-B801 is made of white PVC material (size 808030mm, weight 150g), supports RS-485 two-wire network and MODBUS protocol, is compatible with two-core water leakage detection cables (up to 500 meters), the detection sensitivity is continuously adjustable and the response time is < 1S, the relay output can be selected normally open and closed, powered by DC12V/3W, which can accurately monitor ordinary tap water and adapt to the needs of multi-scene flood protection.
5.Deliver,Shipping And Serving
This product will be delivered within 1-3 working days after the payment of the spot order, and the customized needs will be delivered on time according to the agreed cycle, and the product certificate, user manual and calibration report will be attached with the box; In terms of service, the product provides a 1-year free warranty from the date of receipt, and if there is a non-human fault during the warranty period, it can be repaired or replaced for free by phone, and can be remotely assisted in solving problems in installation, debugging and use.
6.How to install?
The installation and use of the area type water immersion monitoring device ROC-LDA-B801 can be viewed by scanning the QR code of the product shell to view the video or refer to the user manual.
