Power Distribution Unit
1.Product Introduction of Power Distribution Unit OM-SPDU-3218
The OMARA intelligent PDU is a remote monitoring and management power distribution system specially designed for data centers. It adopts core technologies with independent intellectual property rights, integrating network communication, power distribution, and power metering. The product has the function of hot-swapping of the whole unit module, enabling flexible installation, and supports vertical/horizontal fixation. It is suitable for power input of AC110V-250V, 50/60HZ, and the maximum load current can reach 63A. The output unit supports 4-way output, and the main module can support up to 8 auxiliary modules at most. The rated output voltage is AC220V, 50/60HZ. The product also has an LCD display and various interface parameters to meet different application requirements.
2. Product Parameter (Specification) of Power Distribution Unit OM-SPDU-3218
| project name | Basic description | |
| input | Rated input voltage | AC110V-250V 50/60HZ |
| Maximum load current | 0-63A | |
| Power input mode | Single-phase input, and a three-phase input | |
| Input parameter acquisition | Current, voltage, electic energy ,power(active power, reactive power, apparent power, power factor) | |
| output | output unit | The auxiliary module is 4 output, and the main module supports up to 8 auxiliary modules |
| Rated output voltage | AC220V 50/60HZ | |
| Output parameter acquisition | Current, voltage, electric energy, power (active power, reactive power, apparent power, power factor) | |
| rated output current | 16A | |
| Display part | LCD | A 2-inch LCD display color screen |
| interface parameters | RJ45(NET)1 | 10/100M Etheret access interface |
| Cascade interface | 2 RS485 were used for the device cascade | |
| Sensor interface | 3 external sensor module interfaces | |
| 1 with a USB interface | Plug in the U disk for upgrading the wireless module access of the software system | |
| Other parameters | With 3 physical buttons | 1 upflip button for LCD display; 1 lower tum button for LCD display; One reset button |
| 2s(color LED lights) | Prepare the power supply status indicator and abnormal alam indicator | |
| work enviromment | operating ambient temperature | 0°C~50°C |
| Humidity of working environment | 10-90% | |
3. Product Feature And Application of Power Distribution Unit OM-SPDU-3218
Modular Design: Flexible configuration to meet the needs of different customers.
Remote Monitoring: Remotely monitor the power distribution status through the network and keep track of the device operation status in real time.
High-precision Metering: Accurately measure parameters such as current, voltage, and electric energy to provide data support.
Energy Management: Effectively manage power distribution, reduce energy consumption, and improve operational efficiency.
Safe and Reliable: Integrated with multiple protection functions to ensure the safe operation of the device.
Application Scenarios: Widely used in data centers, telecommunication machine rooms, industrial control, and other fields, providing users with efficient and reliable power management solutions.
4. Product Details of Power Distribution Unit OM-SPDU-3218

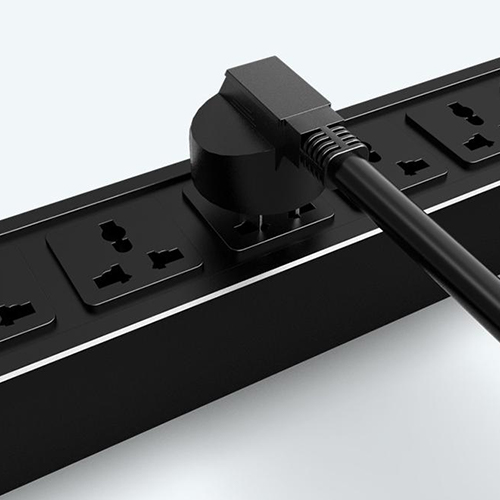

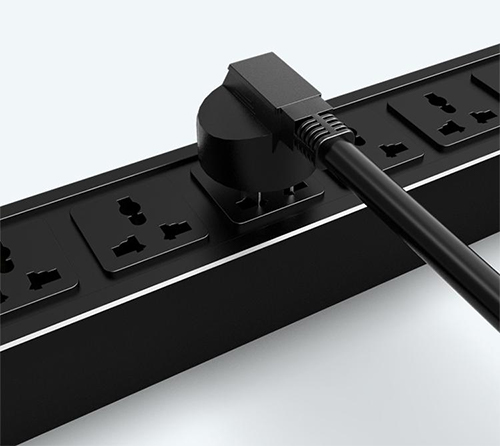

The power distribution unit OM-SPDU-3218 has an aluminum alloy shell, which is sturdy and durable, with fast heat dissipation and a long service life.
5. FAQ
Q: How to install the power distribution unit OM-SPDU-3218?
A: It supports vertical/horizontal fixed installation, and the installation method is flexible and convenient.
Q: How to remotely monitor the power distribution unit OM-SPDU-3218?
A: Users can input the device's IP address through the WEB interface or mobile application to monitor the device status in real time and perform remote control.
Q: What are the alarm functions of the power distribution unit OM-SPDU-3218?
A: The power distribution unit OM-SPDU-3218 supports threshold alarms for parameters such as current, voltage, temperature, and humidity. Users can set the alarm thresholds according to actual needs.
