Linux System Screen Cabinet In Power Distribution Room

1.Product Introduction of Linux System Screen Cabinet In Power Distribution Room

The Distribution Room Linux System Cabinet is an intelligent monitoring solution specifically designed for power cabinets. The system integrates hardware devices such as a terminal monitoring host, a touch display screen, an NVR, and a switch. It supports real-time monitoring by various sensors including temperature and humidity sensors, SF6 gas sensors, water level sensors, and smoke sensors. Through intelligent linkage control, the system can automatically adjust devices such as air conditioners, water pumps, and fans to ensure that power equipment operates in the optimal environment. It is widely applied in scenarios such as substations, switchgears, and residential power distribution stations, providing users with comprehensive equipment monitoring and management services.

2. Product Parameter (Specification) of Linux System Screen Cabinet In Power Distribution Room

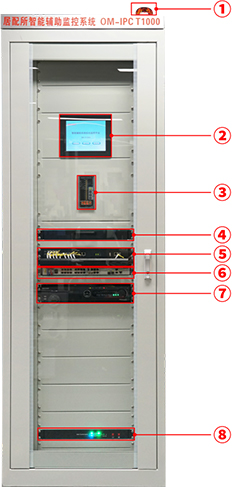

	Number	Name	Function
	1	Audible and Visual alarm	Local sound and light alarm, equipment abnomal linkage sound and light alarm
	2	The 8-inch touch display screen	The touch screen for on-site inspection and operation shorws the real-tme monitoring data collected by the front-end sensor, can set the monitoring threshold, remotely operate the controllable equipment, and provide the alarm record query functon
	3	Water level detector	Monitor the water level of the cable trench, and exceed the limit alarm
	4	Pull-out display	Local pull-out display screen, support on-site viewing of real-time video, video playback, alarm Settings, etc
	5	Terminal monitoring host	Centralized monitoring of environmental temperature and humidity, SF6 gas,harmful/toxic gas, human infrared, smoke sense, water level, acces contol, video, bus temperature measurement (optional), transformer temperature measurement (optional), local discharge monitoring (optional), etc.. with linkage functions with water pump, fan, air conditioning, dehumidifier and other functions, support IEC61850 protocol
	6	exchange board	The terminal monitors the data exchange of the host, camera, NVR, access control and other equipment, and pushes the data to the background monitoring center
	7	Hard disk video recorder	Monitor, store, playback, and alarm the video information at the scene
	8	Tum and direct double power supply switching device	Double power supply automatic switch, two input mains power supply, to ensure the continuous normal operation of the equipment

3. Product Feature And Application of Linux System Screen Cabinet In Power Distribution Room

(1) Features of the Distribution Room Linux System Cabinet

Multi-functional Integration: Supports real-time monitoring by various sensors such as temperature and humidity sensors, SF6 gas sensors, water level sensors, and smoke sensors, meeting the monitoring needs in complex environments.

Intelligent Linkage Control: The system can automatically adjust devices such as air conditioners, water pumps, and fans according to the monitored data to ensure that power equipment operates in the optimal environment.

High-precision Data Collection: Adopts high-precision sensors to ensure accurate and reliable data, helping users achieve efficient operation and maintenance management.

Wide Range of Application Scenarios: Applicable to scenarios such as substations, switchgears, and residential power distribution stations, providing users with comprehensive equipment monitoring and management services.

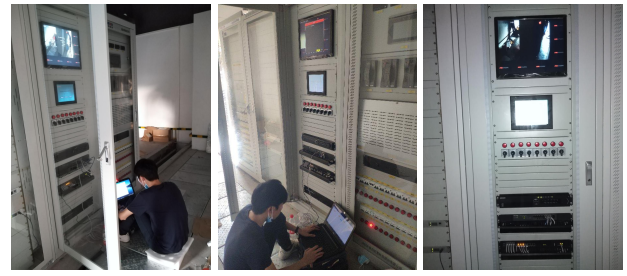

(2) Our company's Distribution Room Linux System Cabinet has been successfully applied in multiple projects and has been widely recognized by customers.

Smart Power Distribution Room Construction of Guangzhou Power Supply Bureau

Reconstruction of a 35KV Substation of a Branch of China National Petroleum Corporation

Other Case List

4. Product Details of Linux System Screen Cabinet In Power Distribution Room

The Distribution Room Linux System Cabinet adopts a modular design and supports flexible configuration of various sensors. The core of the system is the terminal monitoring host, which centrally manages the data of all sensors and displays it in real time through the touch display screen. The system supports remote monitoring and management, allowing users to view the equipment status and alarm information anytime and anywhere through the network.

5. FAQ

Q: What are the alarm methods of the Distribution Room Linux System Cabinet?

A: The system supports acoustic and optical alarms and remote alarms. Users can view the alarm information through the touch display screen or the network.

Q: Is the installation of the Distribution Room Linux System Cabinet complicated?

A: The installation of this system is relatively simple. We provide a detailed user manual, including instructions on cabinet configuration, front-end sensor wiring, cabinet network access, and other steps. At the same time, our technical team can also provide installation guidance services.

Q: Can the Distribution Room Linux System Cabinet be customized according to our needs?

A: Yes, our company has significant advantages in personalized customization and can customize the system according to your specific requirements to meet your special needs.

6. Company Introduction

OMARA Information Technology Co., Ltd., founded in 2011, focuses on the research and development of industrial embedded systems and IOT platforms, with more than 60 independent intellectual property rights.

With the mission of "focusing on security pressure and challenges, integrating sensor, Internet of things and big data technology to make security worry free and controllable", the company has significant competitiveness in network operation, personalized customization and small batch production.
