1.Product Introduction of Drop-Type Water Level Sensor
The OM-ACC-A214 submersible water level sensor utilizes a high-performance diffused silicon piezo-resistive pressure sensor. By measuring the static pressure of the liquid, it converts it into a standard signal (current, voltage, RS485) output, achieving precise measurement of liquid depth. It is suitable for liquid level measurement and control in sectors such as petroleum, chemicals, power plants, urban water supply, hydrological exploration, and more.
2. Product Parameter (Specification) of Drop-Type Water Level Sensor
| Measurement Range | 0...1m to 0...200m |
| Output Signal | (4~20)mA, (1~5)V, (0~10)V, (0-5)V, RS485 |
| Power Supply | Lead wire type: (10-32)V(4-20mA), (12-32)V(0-10V), (8-32)V(0-5V/1~5V/RS485); 2088 housing type: (12-32)V(0-10V), (8~32)V(0-5V/1~5V), (12~32)V(4-20mA with display), (9-32)V(4-20mA without display) |
| Accuracy | 0.5 class |
| Response Time | ≤10ms(for current voltage output), ≤100ms(for RS485 output) |
| Protection Rating | Sensor lP68, 2088 housing lP65 |
| Medium Temperature | -10°C to 65°C |
| Ambient Temperature | -20°C to 85°C |
3. Product Feature And Application of Drop-Type Water Level Sensor
The OM-ACC-A214 submersible water level sensor features a high-performance diffused silicon piezo-resistive sensor, probe submersion measurement, multiple protection designs, corrosion-resistant stainless steel materials, and support for multiple output signals. Additionally, this sensor comes in various styles and uses corrosion-resistant stainless steel materials, suitable for multiple industrial settings. It is widely used in liquid level measurement and control in sectors such as petroleum, chemicals, power plants, urban water supply, hydrological exploration, and more.
4. Product Details of Drop-Type Water Level Sensor

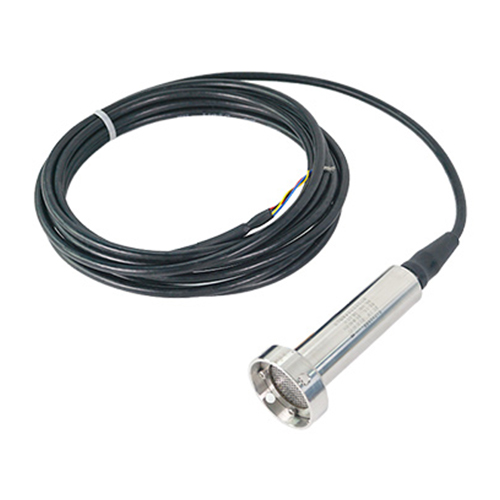

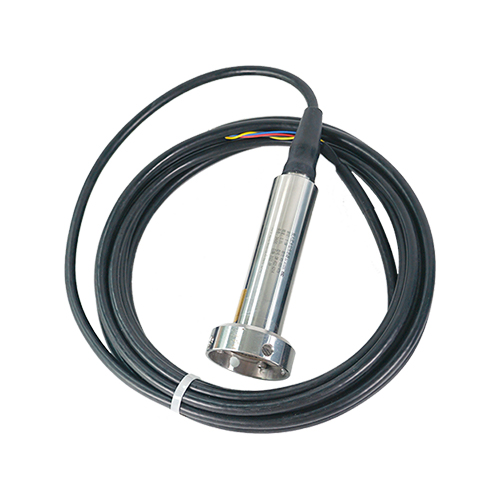

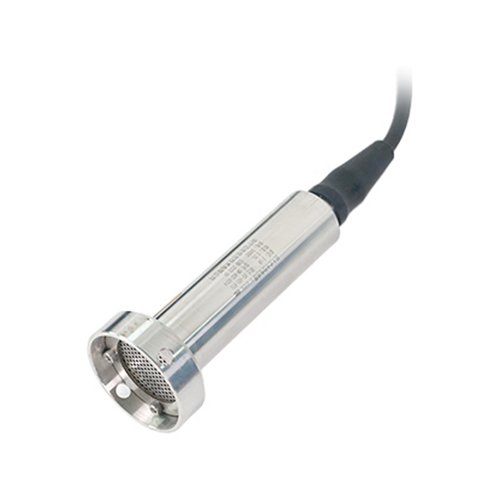

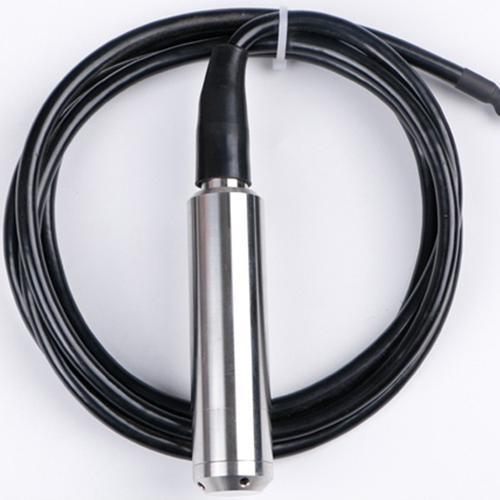

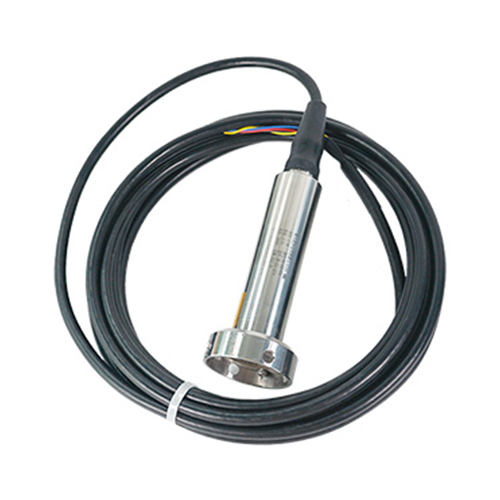

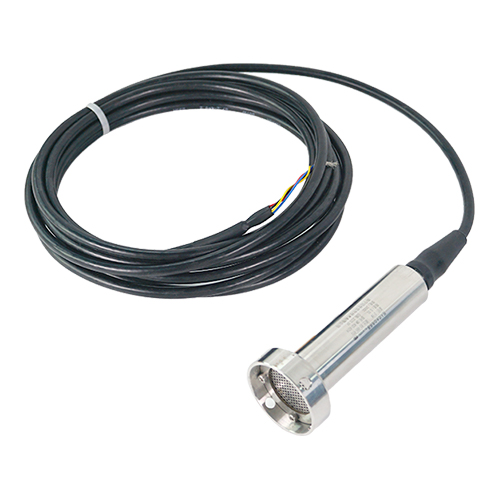

The OM-ACC-A214 is directly submerged into the liquid, with the metal probe sinking to the bottom of the container. It supports 2088 housing-type installation, with or without a display. The 2088 housing with a display supports multiple display modes (pressure value, current value, percentage), and parameter settings (units, decimals, display mode, etc.) can be made via buttons. It supports RS485 communication, is compatible with the MODBUS protocol, and allows remote monitoring and configuration of device parameters. The sensor adopts an IP68 protection rating, suitable for underwater environments; the 2088 housing has an IP65 protection rating, suitable for industrial environments.
5. Product Qualification of Drop-Type Water Level Sensor

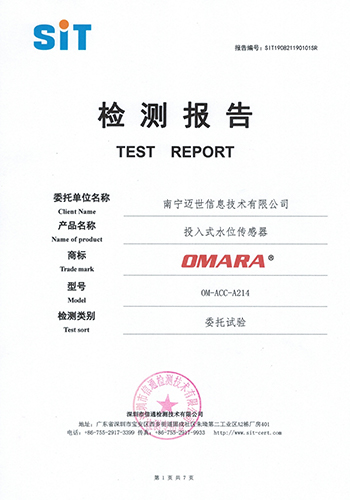

The OM-ACC-A214 submersible water level sensor has obtained a third-party test report, ensuring its high accuracy and reliability.
6. Deliver, Shipping And Serving of Drop-Type Water Level Sensor
We provide comprehensive after-sales service, including a 1-year warranty and 24/7 technical support, ensuring that users have no worries during use.
7. FAQ
Q: How do I install the sensor?
A: Submerge it directly into the liquid, ensuring the metal probe sinks to the bottom of the container and stays away from vibration and heat sources.
Q: What output signals are supported?
A: It supports (420)mA, (15)V, (010)V, (05)V, and RS485 outputs.
