1. Product Introduction
This product is a scalable, functional customization and secondary development call controller series, complete and stable, easy and fast installation, widely used in data centers, communication base stations, enterprises, residences, public places and special environments. The device adopts RS-485 or TCP/IP communication link; The control output of the access control system is: single-door two-way control/double-door control/four-door control. It supports access control access groups extended by freely programmable actions, supports a variety of events, groups those options that fail to return, and special control functions such as first card opening, time-counted door opening, anti-submarine protection, disability assistance, and multi-door interlock devices.
2.Product Parameter (Specification)
| Product Model | Single-door Controller ROC-ACC-A101, Double-door Controller ROC-ACC-A102, Four-door Controller ROC-ACC-A103 | Maximum Networked Units | 485 Communication: Up to 256 units per serial port; TCP/IP Communication: Unlimited units |
| User Capacity | 20,000 card user permissions | Circuit Board Power Consumption | RS485: 100mA; TCP/IP: 250mA |
| Offline Records | 100,000 entries | Distance from Card Reader to Controller | 100M |
| Communication Method | RS485 (Jumper-free, auto-adaptive, 9600 baud rate); TCP/IP Network Communication (10/100M auto-adaptive) | Supported Alarm Types | Door left open for a long time, illegal intrusion, duress alarm functions |
| Access Mode | Card swiping for entry + exit button, or card swiping for both entry and exit | Door Contact Input | Single-door: 1 channel; Double-door: 2 channels; Four-door: 4 channels |
| Card Reader Protocol | Wiegand 26 protocol (compatible with all card readers under this protocol) | Exit Button Input | Single-door: 1 channel; Double-door: 2 channels; Four-door: 4 channels |
| Door Control Delay | 1-600 seconds (adjustable) | Certification | Third-party testing |
3.Product Feature And Application

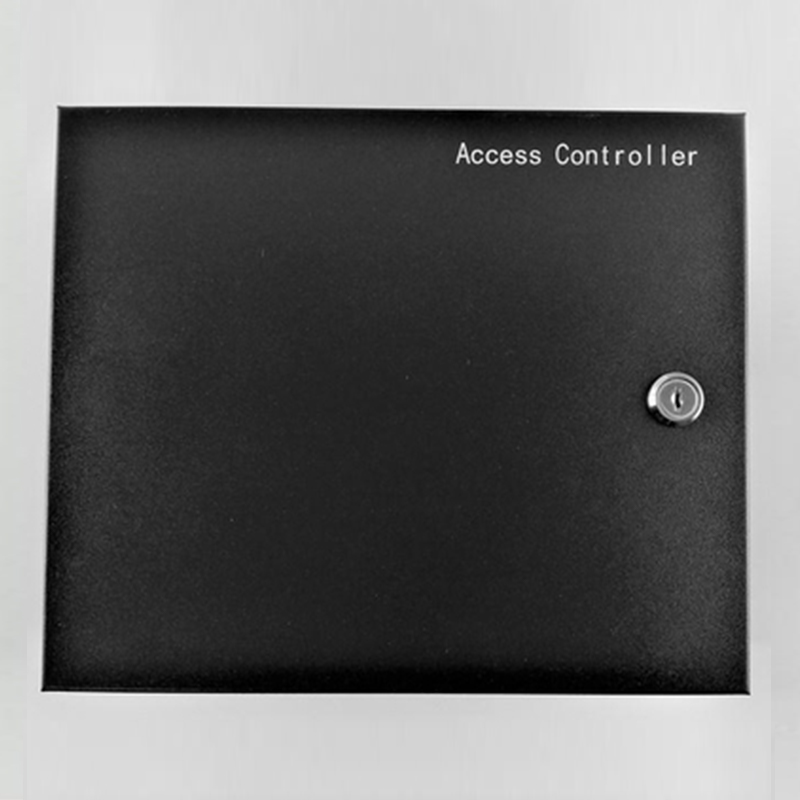

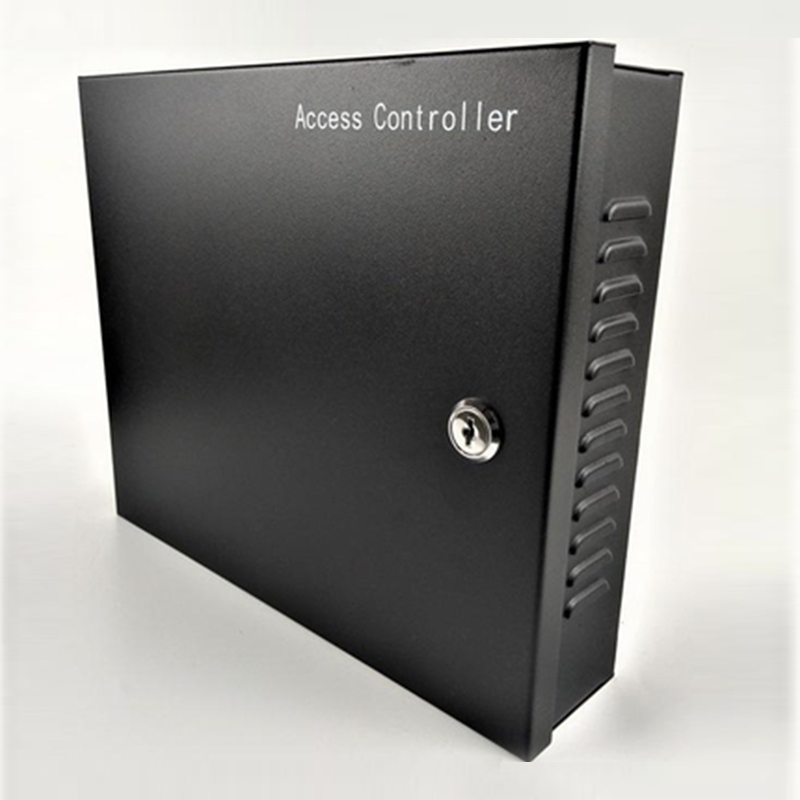

The intelligent networked access control controller ROC-ACC-A101 has flexible permission management (sub-department/time-based management, scheduled upload permissions), real-time monitoring (query and extraction data, display of door status and photos), remote control (remote/forced door opening/closing), personnel positioning and number of people in the door query functions, supports a variety of door opening methods, can realize linkage control (linkage output, fire protection/emergency door opening and illegal intrusion/forced door opening/illegal card swiping alarm), equipped with multi-level operator management, Electronic map and inspection functions, integrated attendance module, and also support anti-submarine return, multi-door interlocking, multi-card door opening, internal and external card verification and other features to expand performance.
4.Product Details
It is suitable for government, electric power, military, banking, telecommunications, education, hospitals, airports, railways, factories, hotels, warehouses, transportation and other industries, and is designed for access control monitoring and management of computer network rooms, communication rooms, communication base stations, power base stations, substations, residential distribution stations, UPS rooms, battery pack rooms, outdoor cabinets, unattended sites, warehouses and other scenarios.
5.Deliver,Shipping And Serving
When there is stock, the order will be shipped within 3-5 working days after the payment is confirmed, and the domestic door-to-door delivery will be realized through SF Express, Zhongtong and other express delivery, cross-border orders can assist in arranging air / sea freight and prepare the required materials for customs clearance, the equipment is protected by shockproof packaging to protect transportation safety, and 1 year of free warranty is provided from the date of receipt by the customer.
6.How to install?

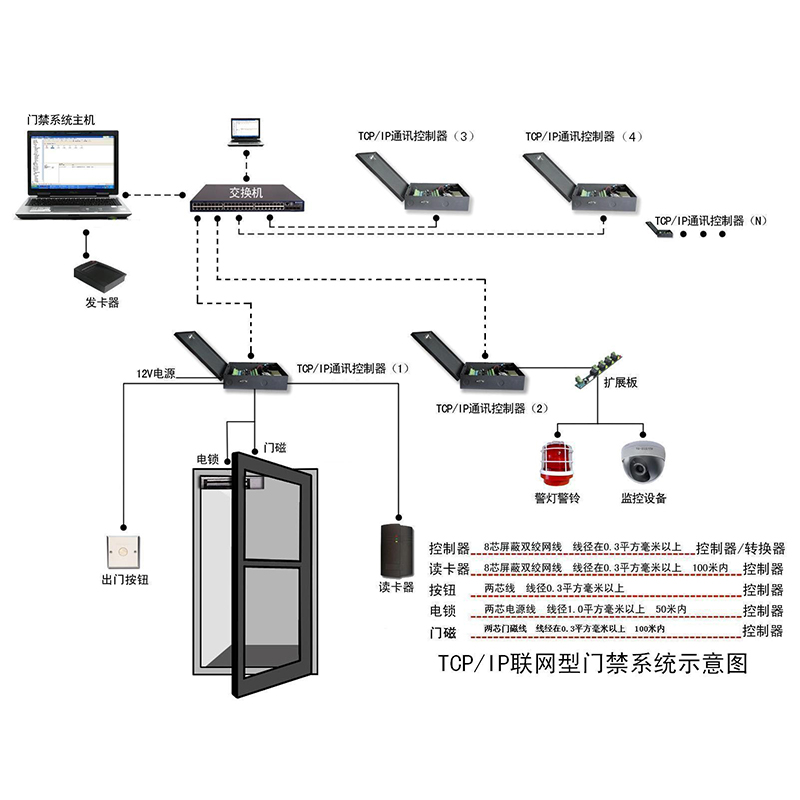

When installing the intelligent networked access control controller ROC-ACC-A101, first fix the controller in a stable position next to the door (such as the wall or distribution box), and then connect the power supply, card reader, door lock, door sensor and exit button according to the wiring diagram, configure the network (RS485 or TCP/IP) parameters, and finally test to confirm that the communication, access control function and alarm response are normal.
